26 Intermec EasyCoder PD4—User’s Guide
Chapter 4—Loading Media

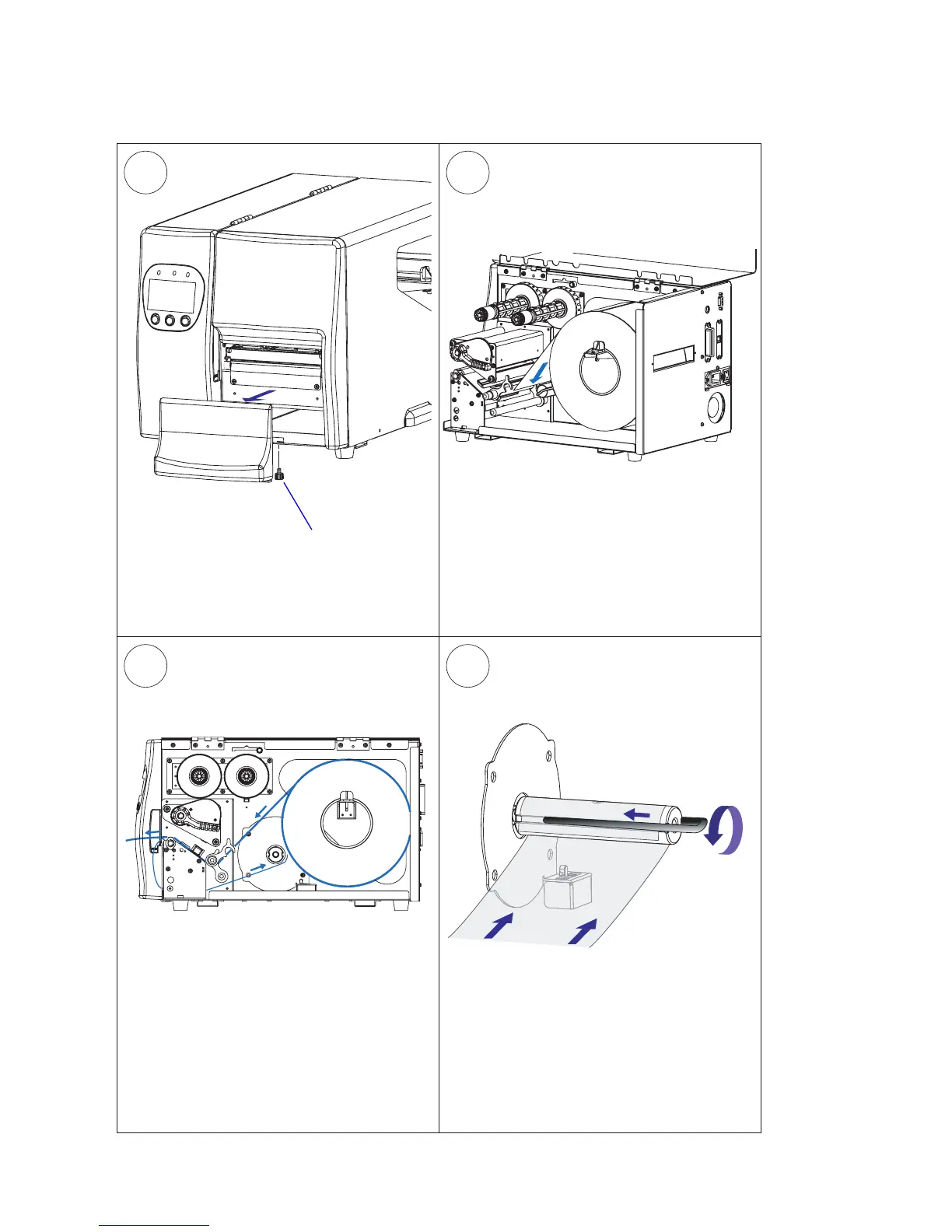

Install the media as described for Tear-
Off operation #1 to #6 earlier in this
chapter.
Peel off the labels from the first 40 cm
(16 in) of the liner and route the liner
around the tear bar, then back under
the print mechanism and label feed rods
to the takeup hub.
Unscrew the front cover screw and
remove the front cover.
Wrap the liner counterclockwise around
the takeup hub and secure it with the
U-shaped clip.
Peel-Off, cont.
Screw
