Version 1.2 (08/2022) en
Translation of original operating instructions 11 of 64
General technical information

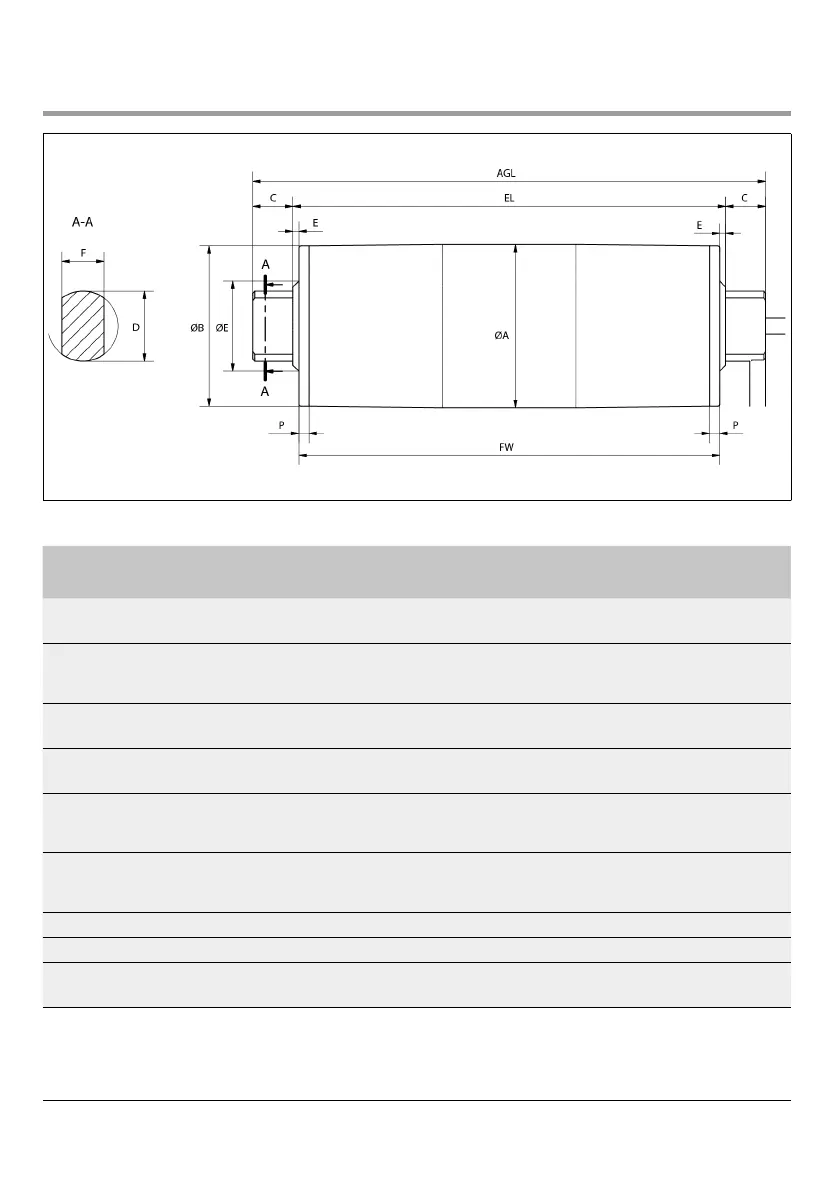

Dimensions of DL series drum motor
Type A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
P
mm
SL
mm
EL
mm
AGL
mm
DL 0080 crowned
SL 260 to 602 mm
81,5 80 20 35 3 21 5 FW-10 FW+6 FW+46
DL 0080 crowned, mild steel
shell,
SL 603 to 952 mm
82,7 81 20 35 3 21 5 FW-10 FW+6 FW+46
crowned, stainless steel shell,
SL 603 to 952 mm
83 80 20 35 3 21 5 FW-10 FW+6 FW+46
DL 0080 cylindrical
SL 260 to 602 mm
80,5 80,5 20 35 3 21 5 FW-10 FW+6 FW+46
DL 0080 cylindrical, mild steel
shell,
SL 603 to 952 mm
82,7 82,7 20 35 3 21 5 FW-10 FW+6 FW+46
DL 0080 cylindrical, stainless
steel shell,
SL 603 to 952 mm
83 83 20 35 3 21 5 FW-10 FW+6 FW+46
DL 0113 crowned 113,3 112,4 20 35 3 21 11 FW-22 FW+6 FW+46
DL 0113 cylindrical 113,0 113,0 20 35 3 21 11 FW-22 FW+6 FW+46
DL 0113 cylindrical
SL 1091 to 2450 mm
114,3 114,3 20 35 3 21 11 FW-22 FW+6 FW+46
