36 of 64
Version 1.2 (08/2022) en
Translation of original operating instructions
Assembly and installation

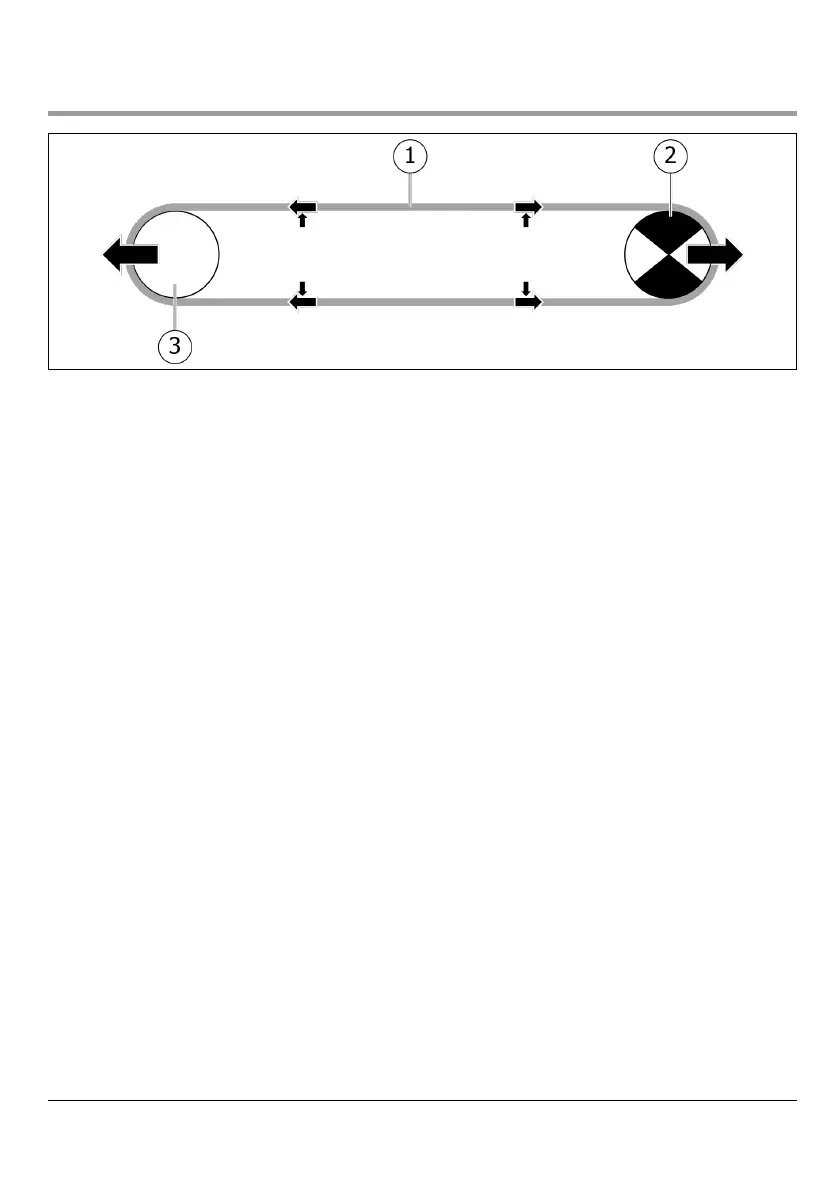

1 Conveyor belt 3 Belt elongation
2 Drum motor
With increasing the distance between idler and drum motor the belt elongates.
8.4.2 Measuring the belt elongation
The belt elongation can very easily be determined using a measuring tape.
1. Mark the untensioned belt at two points in the center where the outer diameter of the drum motor and the
idler pulley are the largest due to the camber.
2. Measure the distance between the two markings parallel to the belt edge (Be0). The greater the distance
between the two markings, the more precise the belt elongation can be measured.
3. Tension and align the belt.
4. Measure the distance between the markings (Be) again. The belt elongation increases the distance.
