Product information of DL series asynchronous 3-phase
5.3.2 Connections in the terminal box

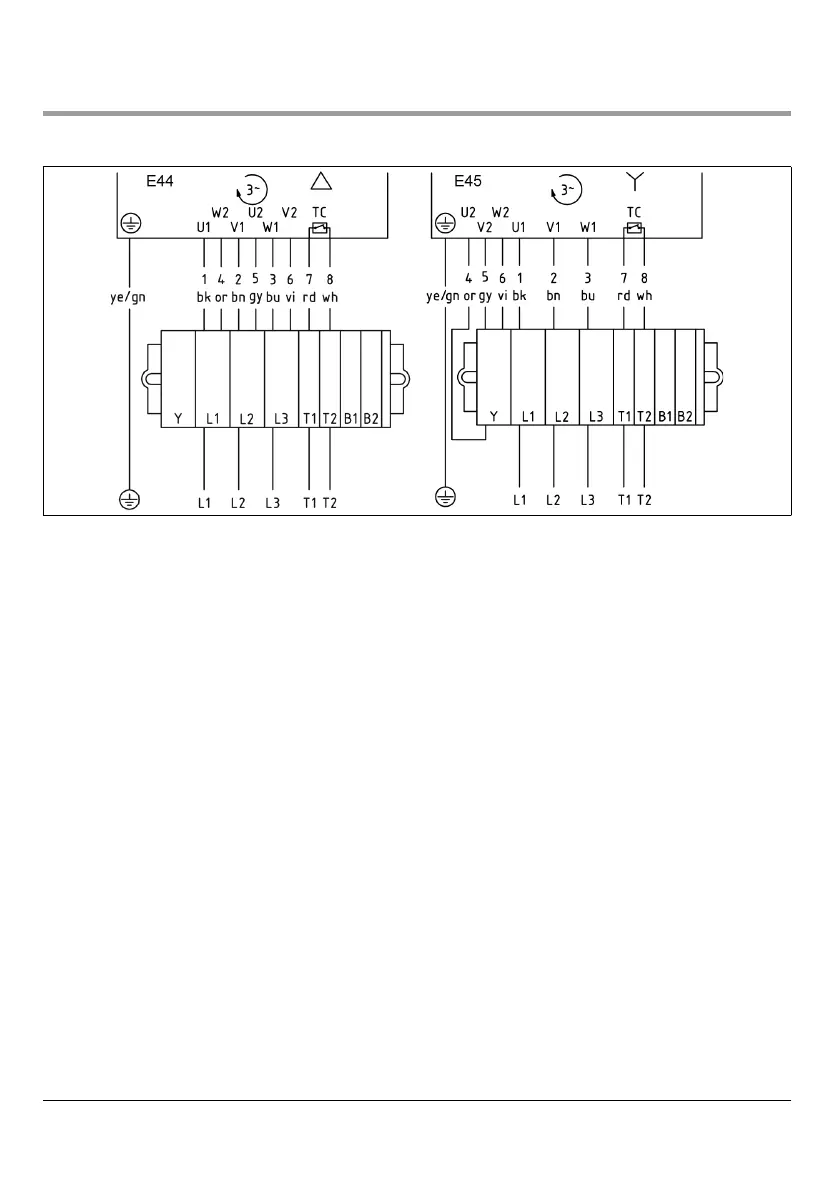

3-phase, 9-core cable, winding for 2 voltages, delta or star connection
Delta connection: Low voltage Star connection: High voltage
Maximum torque for terminal box cover screws: 1.5 Nm
