Product information of DL series asynchronous 3-phase

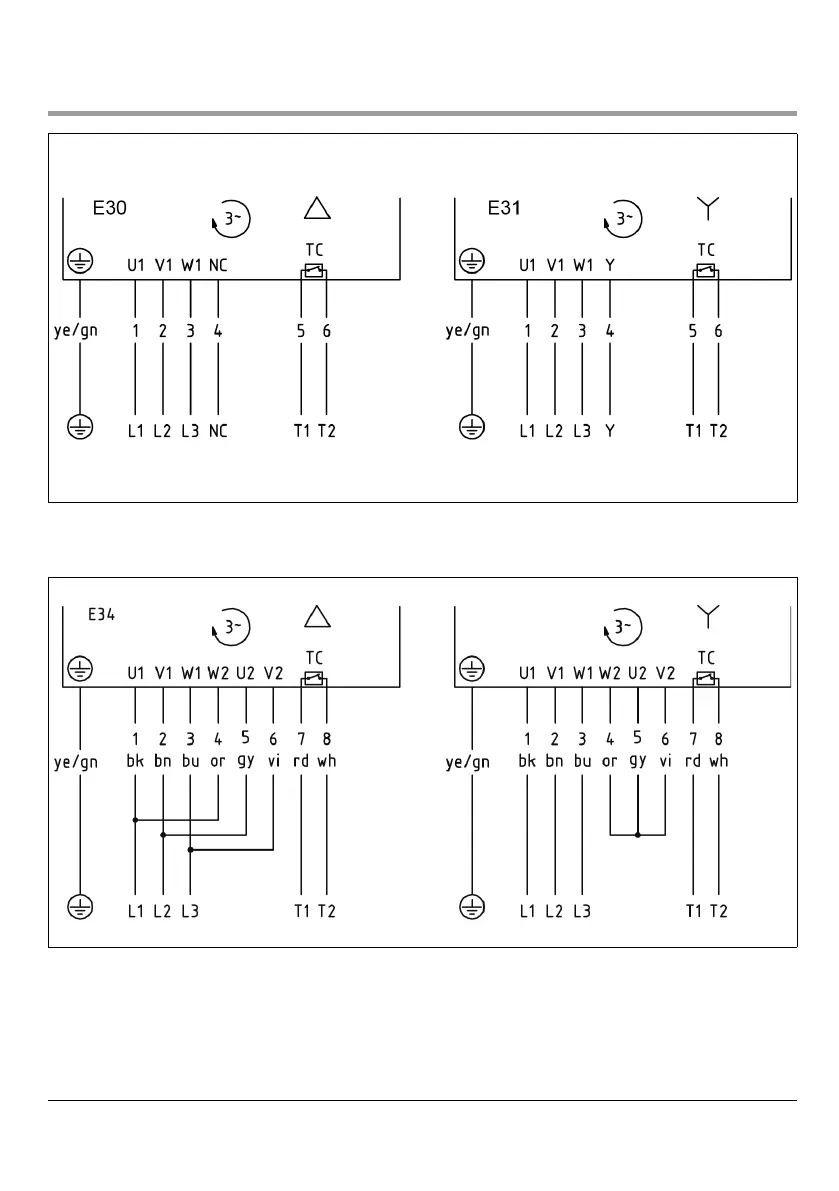

3-phase, 7-core cable, winding for 1 voltage, delta or star connection (internally connected)
Delta connection: Low voltage Star connection: High voltage
3-phase, 9-core cable, winding for 2 voltages, delta or star connection
Delta connection: Low voltage Star connection: High voltage
