Assembly and installation

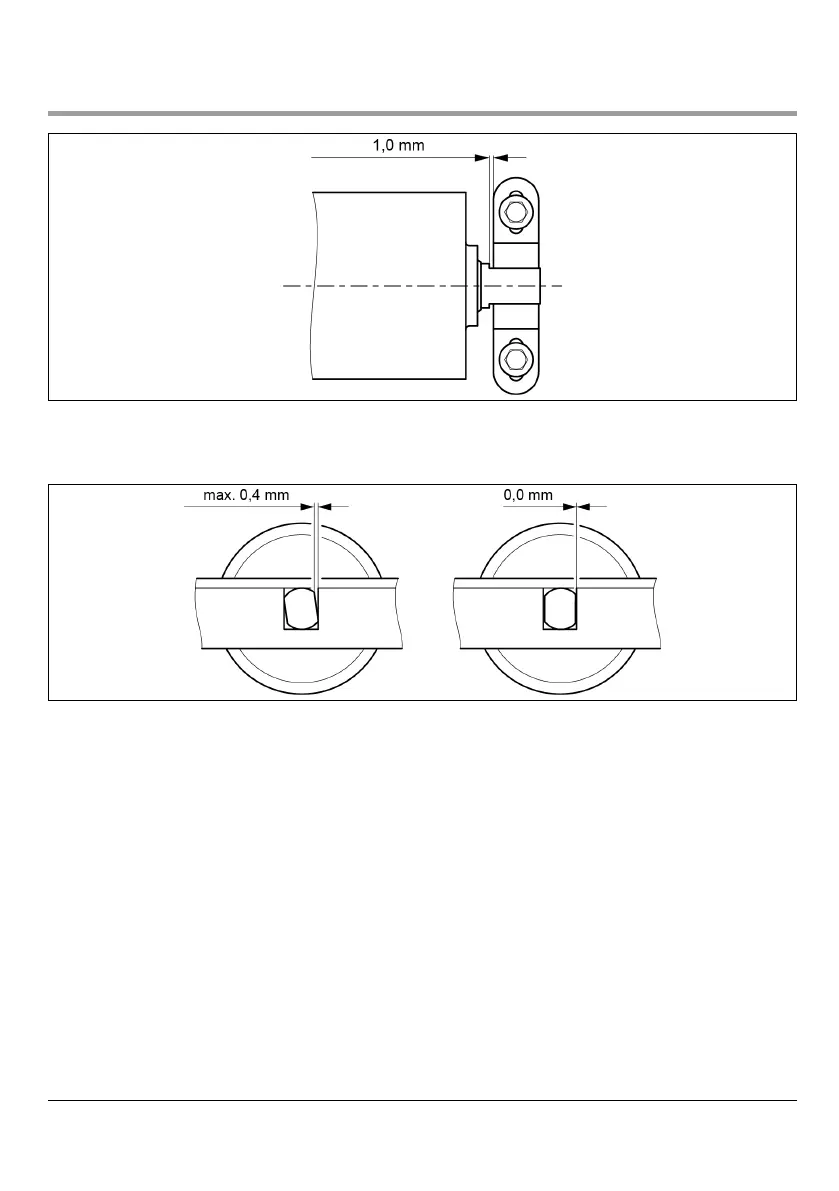

Axial clearance
The entire axial clearance of the drum motor should be at least 1 mm (0.5 mm per side) and no more than 2 mm (1
mm per side).
Torsional clearance for standard applications (left) and for applications with frequent reversing duty or start/stop
operation (right)
¾ If necessary, install a support plate above the mounting bracket to secure the drum motor shaft.
