User’s Manual of netMod Network Termination Unit
Terminal Devices Connection
Connecting Analogue Devices
netMod is equipped with two RJ-11 jacks to connect analogue devices, such as analogue
telephones, FAX G3, etc. (Figure 8).
Pin Description
1 not connected
2 not connected
3 Tip
4 Ring
5 not connected
6 not connected

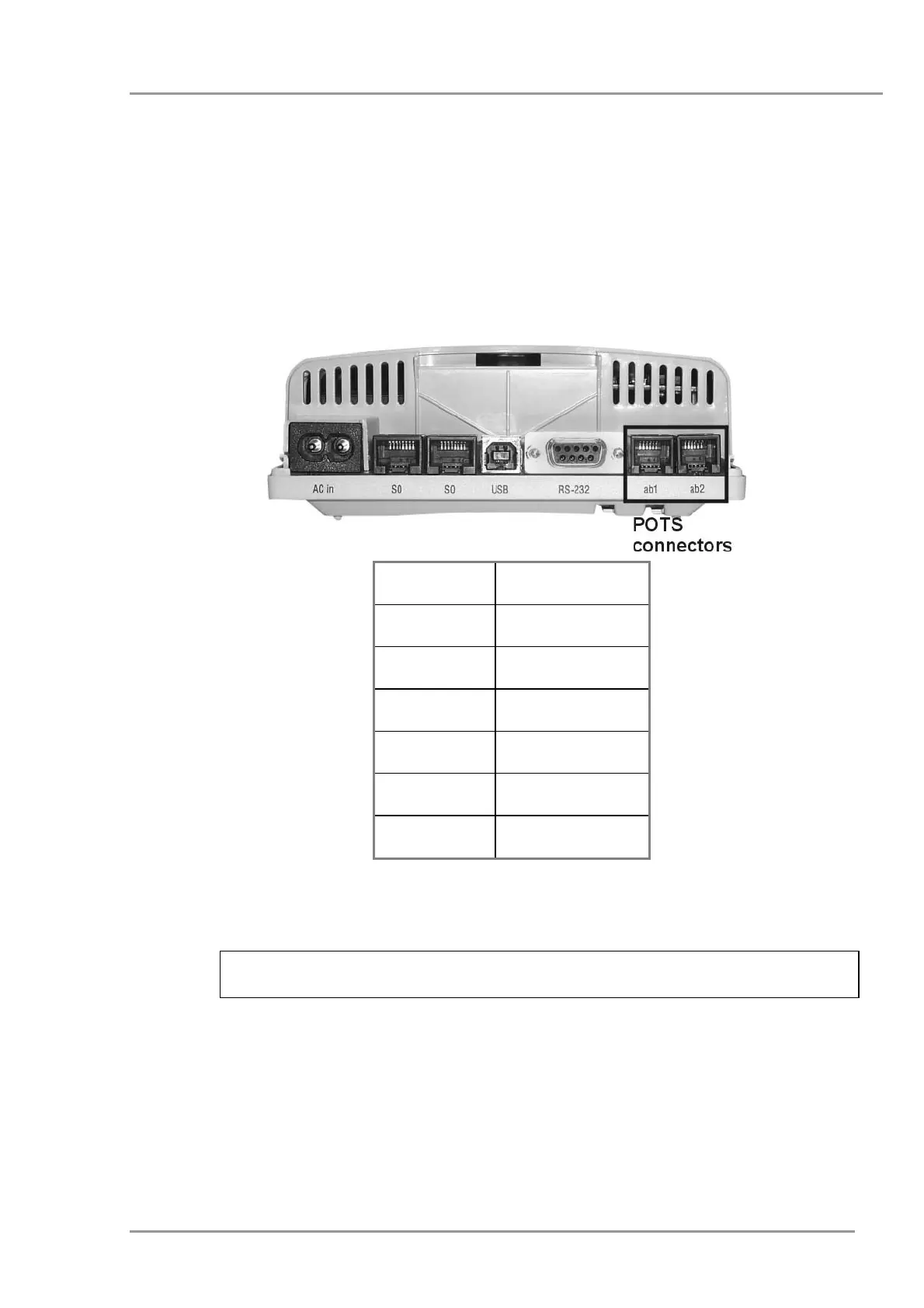

Figure 8: The connection points of plain analogue devices to RJ-11 jacks
The pin numbering of RJ-11 and RJ-45 jacks is from left to right.
1
