4 Allocation of the sub-assemblies and components

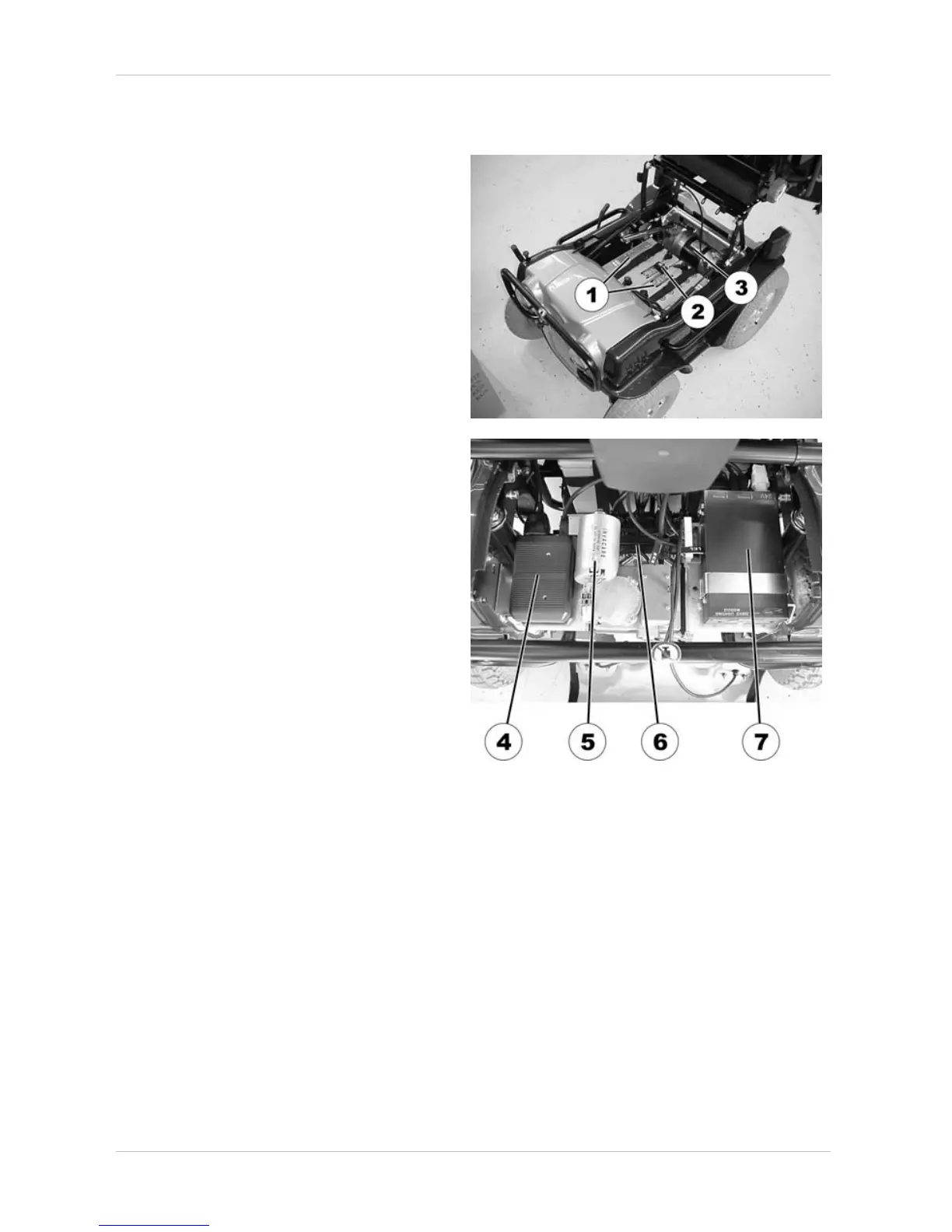

Under the seat:
1) Batteries
2) Main fuse
3) Drive
Under the rear cowling
4) CLAM (Combined Light and Actuator
Module) (only installed if the
wheelchair is equipped with electric
adjustment options)
5) Steering servo
6) Power module (partially covered in
picture)
7) Servo-Light-Module
