SERVICE INSTRUCTIONS
Invacare
®
- G50
48
7.7 Replacing the rear rocker / adjusting toe and camber
WARNING: Danger of crushing!
The mobility device is very heavy. Injury hazard to hands and feet!
• You should seek help from a second person.
Injury hazard caused by uncontrolled movement of the mobility device!
• Switch the power supply off (ON/OFF key).
• Engage the drive.
• Before raising the vehicle, secure the wheels by blocking them with wedges.
• When jacking up the wheelchair please use a block of wood that is large enough to provide
large-area support to the wheelchair under the battery box. This improves the tilt resistance of
the wheelchair during repair work.
Requirements:
• Open-end spanner 13 mm
• Open-end spanner 17 mm
• 24 mm open-ended spanner
• Open-end spanner 38 mm
• 6 mm Allen key
• 10 mm Allen key
• Water pump pliers
• Needle nose pliers
• Mechanic's level, if possible digital
• Rail or bar, approx. 120 cm long, made of aluminium or steel, to adjust the wheel toe. The rail
must be absolutely straight!
• 2 Wooden blocks (approx. 12 x 12 x 30 cm) for jacking up the vehicle
• High strength anaerobic metal adhesive (threadlocker), such as Loctite 2701 or OmniFit 200
Note
Please keep small parts such as screws and grommets safe during dismantling. Lay all small
parts down in such a way that they can be re-fitted in the correct order.
7.7.1 Disassembly

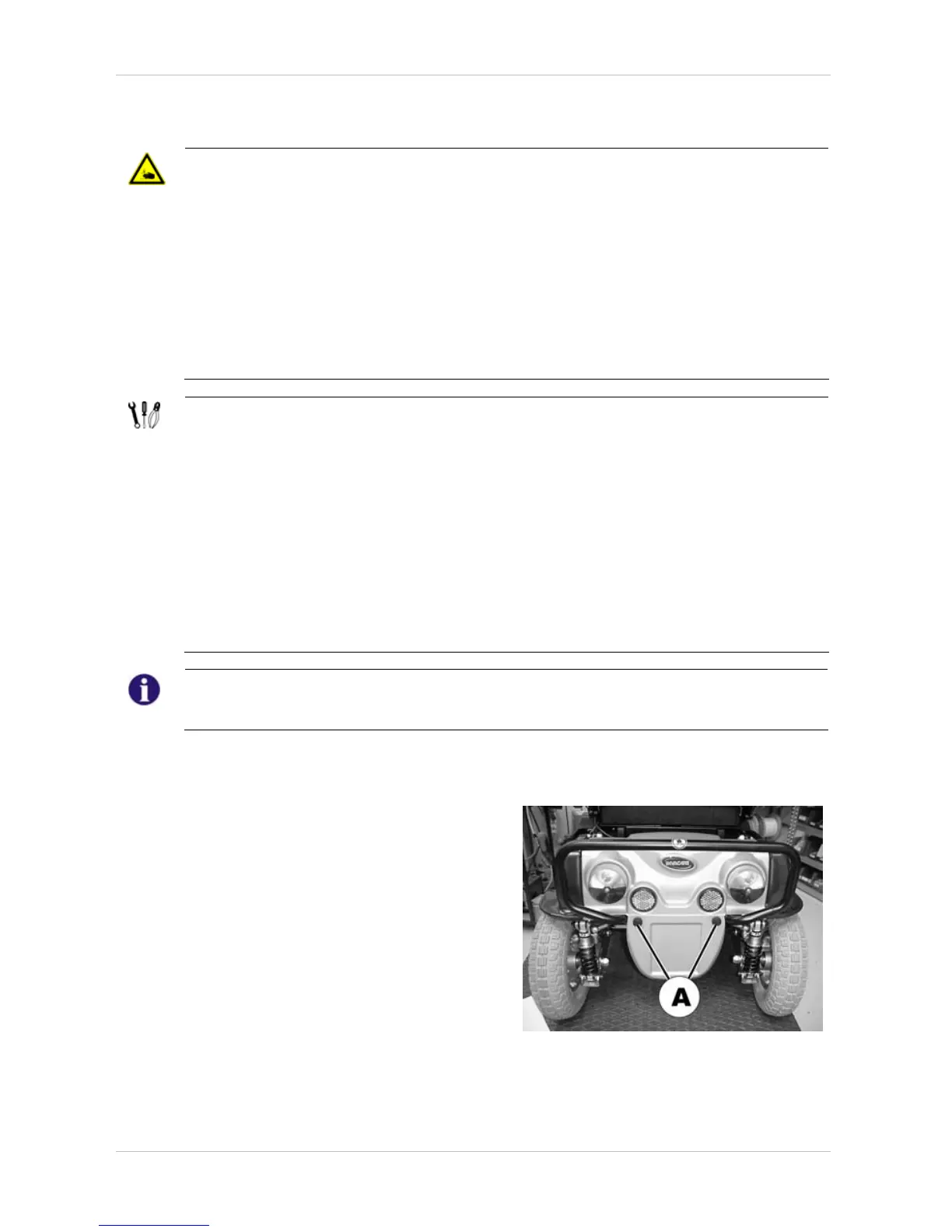

• Loosen and remove the knurled screws (A).
