SERVICE INSTRUCTIONS
Invacare
®
- G50
32

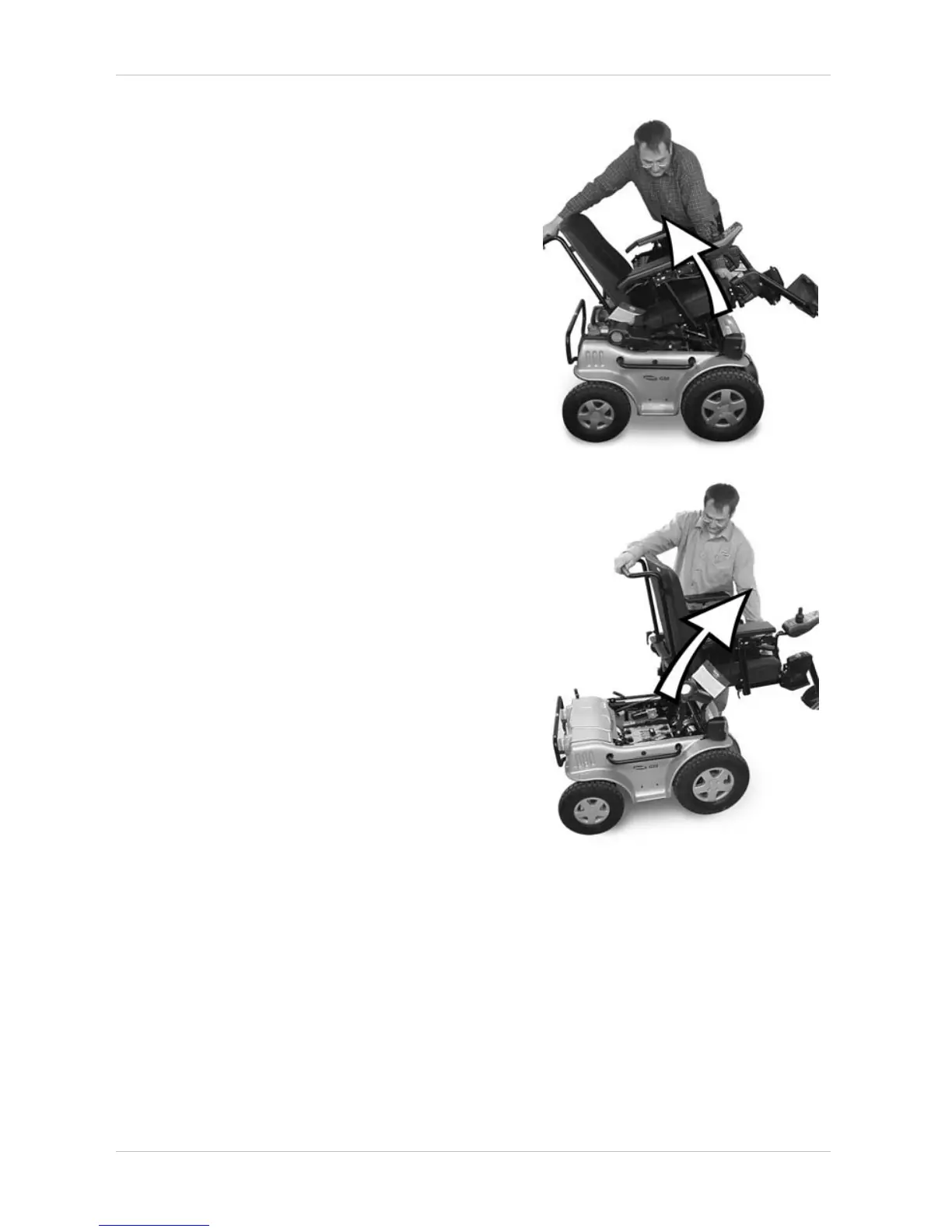

• Press the release button and tip the seat
backward carefully.
• Carefully pull the seat upward and to the front.
Depending on the position of the tilt of the seat,
this will remain in the position shown on the right
or it will swivel further to the front.
7.4.2 Remove the rear cowling
To access the rear fixation bolts of the side handles, the rear cowling needs to be removed.
