Invacare G50 - 7.14 Checking and replacing the main fuse

SERVICE INSTRUCTIONS
Invacare
®
- G50
84

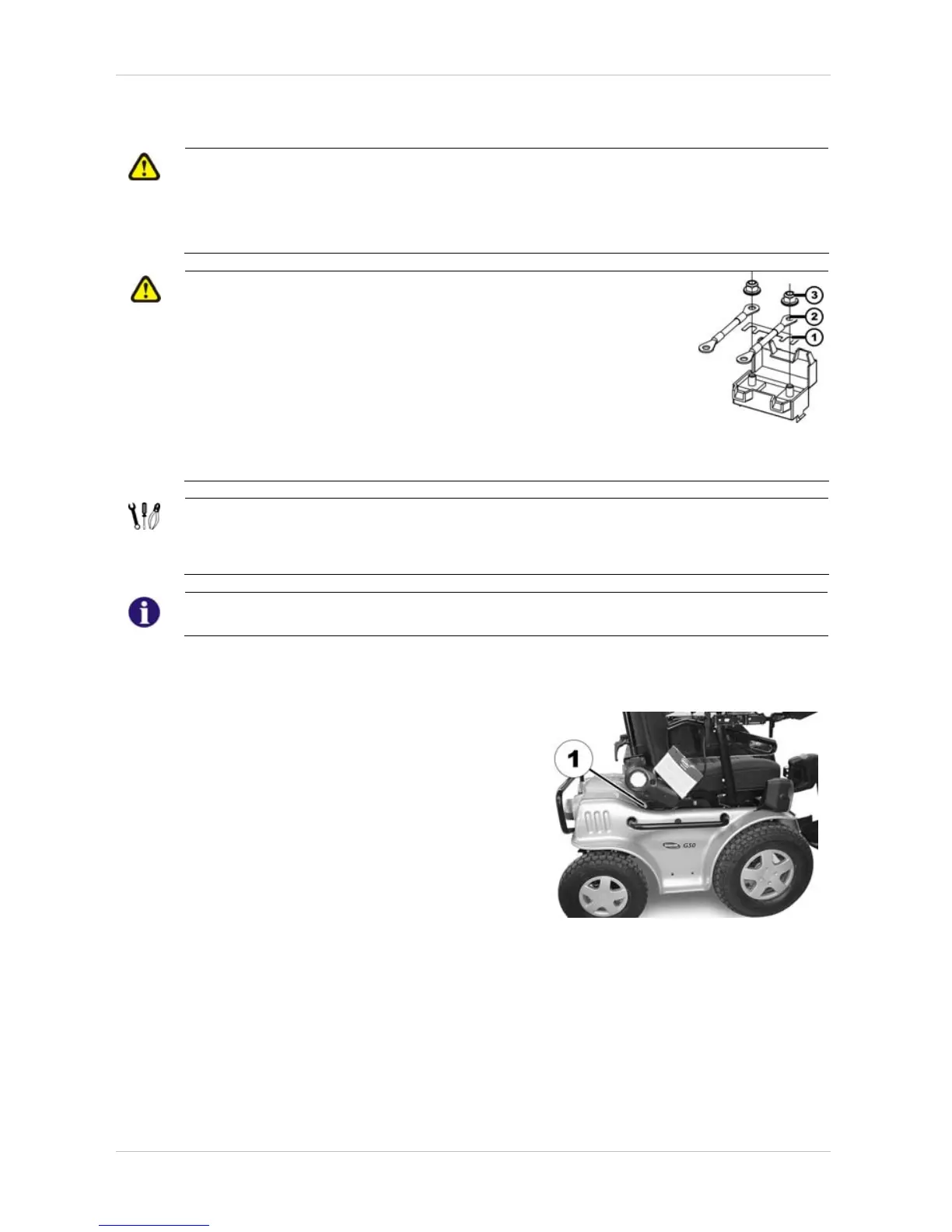

7.14 Checking and replacing the main fuse
CAUTION: Fire hazard!
A short circuit can cause extremely high currents which can result in spark formation and
fire!
• Always use an original strip fuse with the approved amperage.
• If the main fuse has blown, first rectify the cause before fitting a new one.
CAUTION: Fire hazard!
Fitting the incorrect strip fuse causes a fire hazard!
• Only fix the strip fuses in the sequence shown in the image on the right!
• Tighten the nuts with 3.3 or 3.5 Nm!
1. Strip fuse
2. Spade terminal
3. DIN 6923 nut
Requirements:
• 8mm open-ended spanner
• 6 mm Allen key
• 50A strip fuse
NOTE
If the fuse holder is damaged this can be replaced completely together with the battery cables.
7.14.1 Placing seat in service position
• Use the Allen key to loosen the screws (1) on
both sides and remove.
