SERVICE INSTRUCTIONS
87
7.15 Checking the cables
Requirements:
• 6 mm Allen key
• Remove the rear cowling.
• Check all cables for visible damage and
crushing. Check the battery cables (1) for
visible damage and crushing.

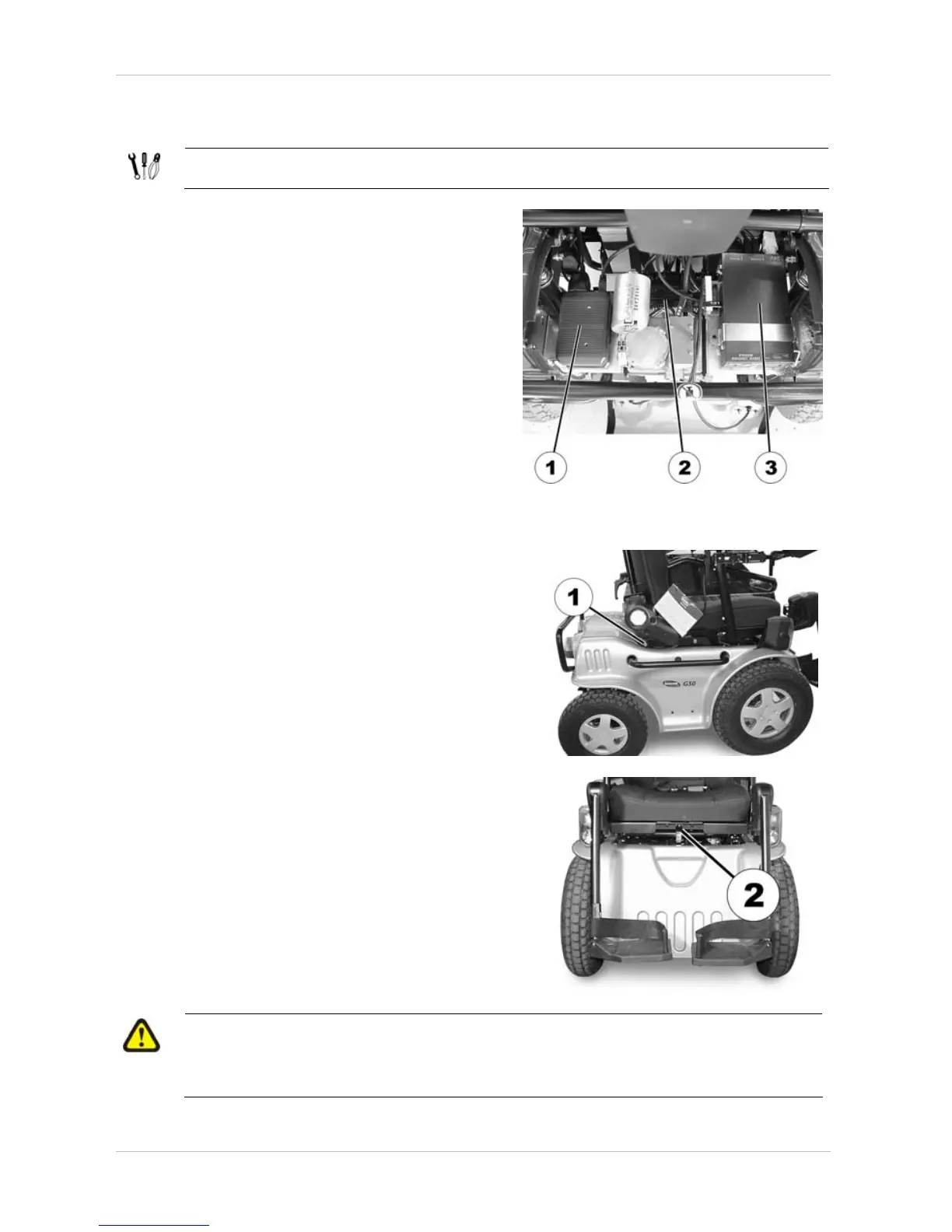

• Pull carefully at every plug-in connection on
the CLAM (1), power module (2) and Servo-
Light-Module (3). It must not come out of the
socket.
• If a plug is loose, apply slight pressure to
push the plug into the socket. It must lock in
place.
• Check whether the plug is now fitted firmly
inside the socket, if not, please repeat the
preceding work step.
7.15.1 Placing seat in service position
• Use the Allen key to loosen the screws (1) on
both sides and remove.
The seat release button is to be found at the front
underneath the edge of the seat (2).
CAUTION!
Damage to the wheelchair due to careless tipping of seat!
• When tipping the seat, make sure the fixation brackets of the backrest do not damage the
side or rear cowlings!
