Invacare G50 - 7.3 Replacing rear cowling; replacing rear lights; 7.3.1 Disassembly

Invacare
®
- G50
SERVICE INSTRUCTIONS
29
7.3 Replacing rear cowling / replacing rear lights
Requirements:
• 8mm open-ended spanner
NOTE
Please keep small parts such as screws and grommets safe during dismantling. Lay all small
parts down in such a way that they can be re-fitted in the correct order.
7.3.1 Disassembly

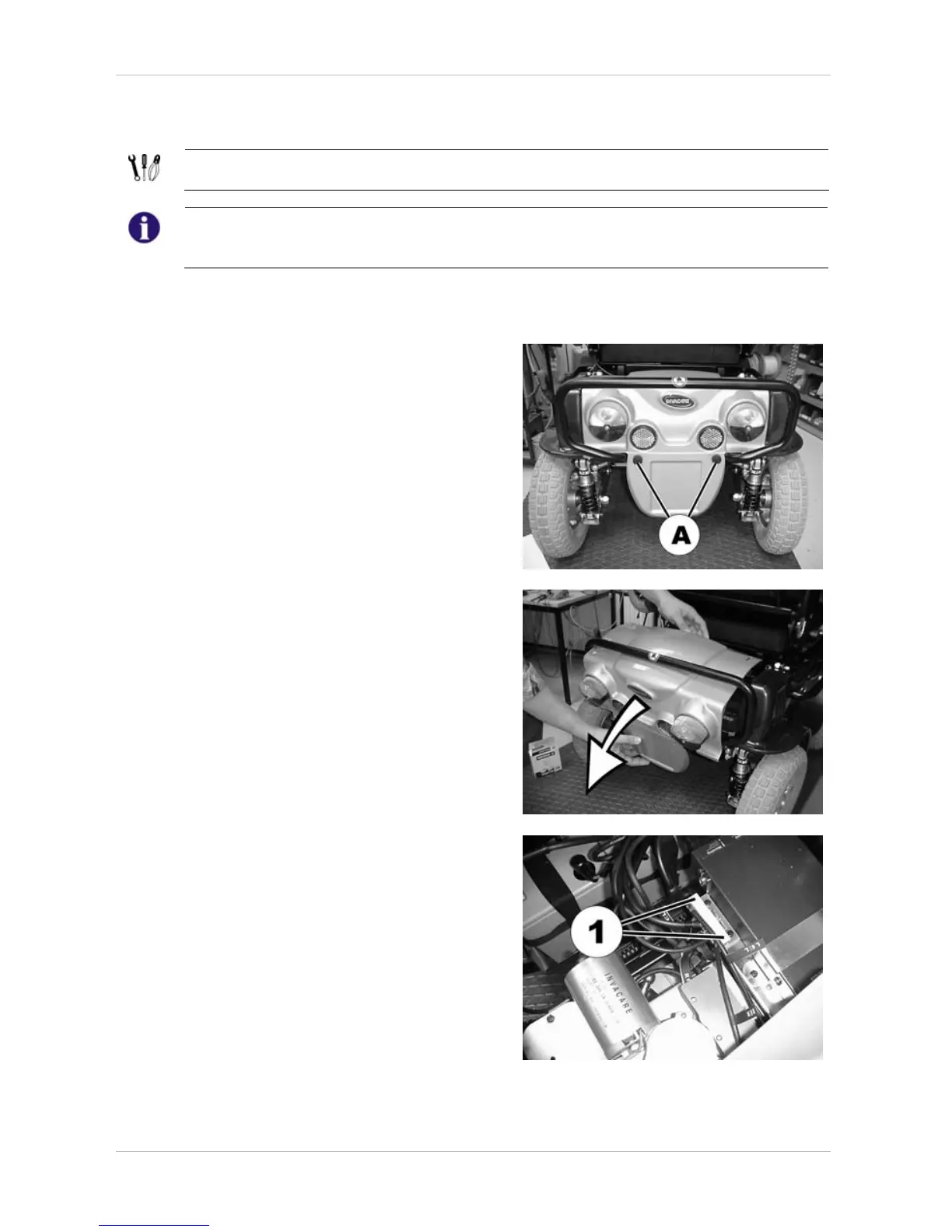

• Loosen and remove the knurled screws (A).
• Pull cowling upwards and backwards.
• Disconnect the plug-in connections (1) of the
rear lighting.
