7.11 Replacing the seat frame (EBAS)
Requirements:
• Open-end spanner 10 mm
• 2x Open-end spanners 13 mm
• Allen key 4 mm
• 6 mm Allen key
• Small, flat screwdriver
• Cutter knife
• Medium strength threadlocker, such as Loctite 243 or OmniFit 100M
Note
Please keep small parts such as screws and grommets safe during dismantling. Lay all small
parts down in such a way that they can be re-fitted in the correct order.

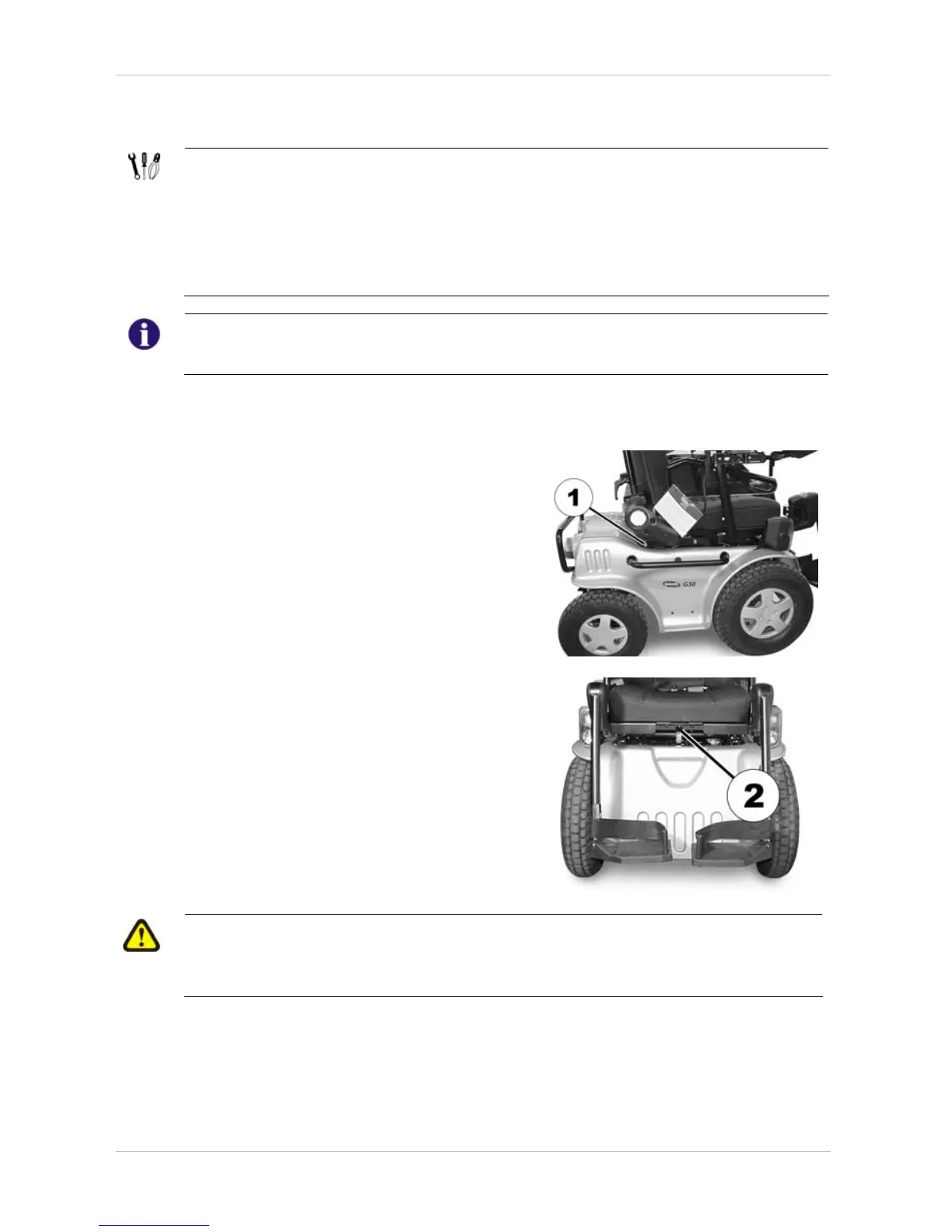

7.11.1 Placing seat in service position
• Use the Allen key 6 mm to loosen the screws (1)
on both sides and remove.
The seat release button is to be found at the front
underneath the edge of the seat (2).
CAUTION!
Damage to the wheelchair due to careless tipping of seat!
• When tipping the seat, make sure the fixation brackets of the backrest do not damage the
side or rear cowlings!
