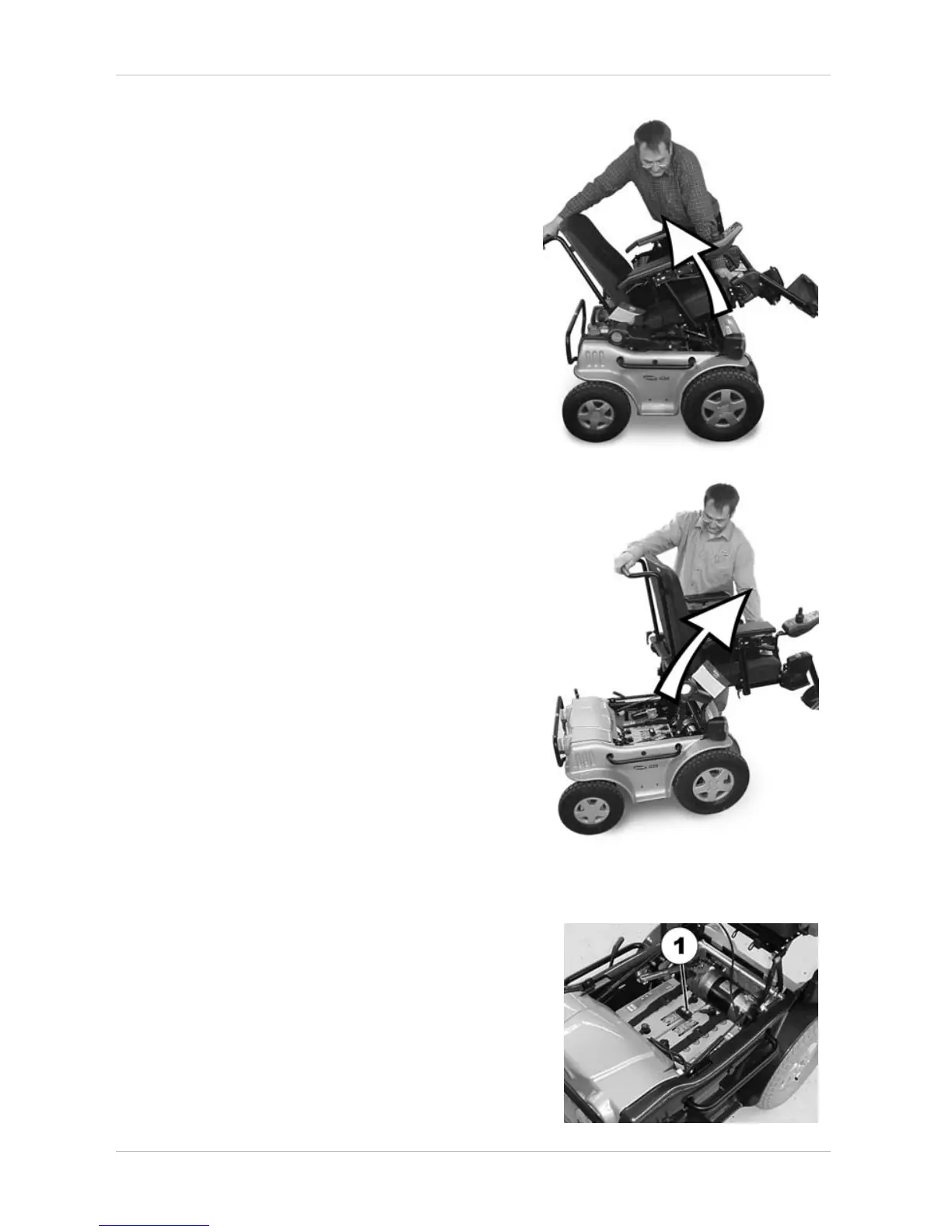

• Press the release button and tip the seat
backward carefully. The seat locks into place in
this position.
• Carefully pull the seat upward and to the front.
Depending on the position of the tilt of the seat,
this will remain in the position shown on the right
or it will swivel further to the front.
7.13.2 Removing the batteries
• Remove the insulation shoe on the cable bridge with
the fuse (1) at the negative terminal (blue cable).
• Loosen battery clamp with spanner and remove
screw.
• Remove the insulation shoe on the cable bridge at
the positive terminal (red cable).
• Loosen battery clamp with spanner and remove
cable.
