7.10 Replacing the Bowden cable of the declutching mechanism
Requirements:
• Open-end spanner 6 mm
• Open-end spanner 8 mm
• Open-end spanner 13 mm
• 3 mm Allen key
• 6 mm Allen key
• Phillips screwdriver
• Small, flat screwdriver
• Diagonal-nosed cutting pliers
• Cable ties
Note
Please keep small parts such as screws and grommets safe during dismantling. Lay all small
parts down in such a way that they can be re-fitted in the correct order.
7.10.1 Replacing the Bowden cable

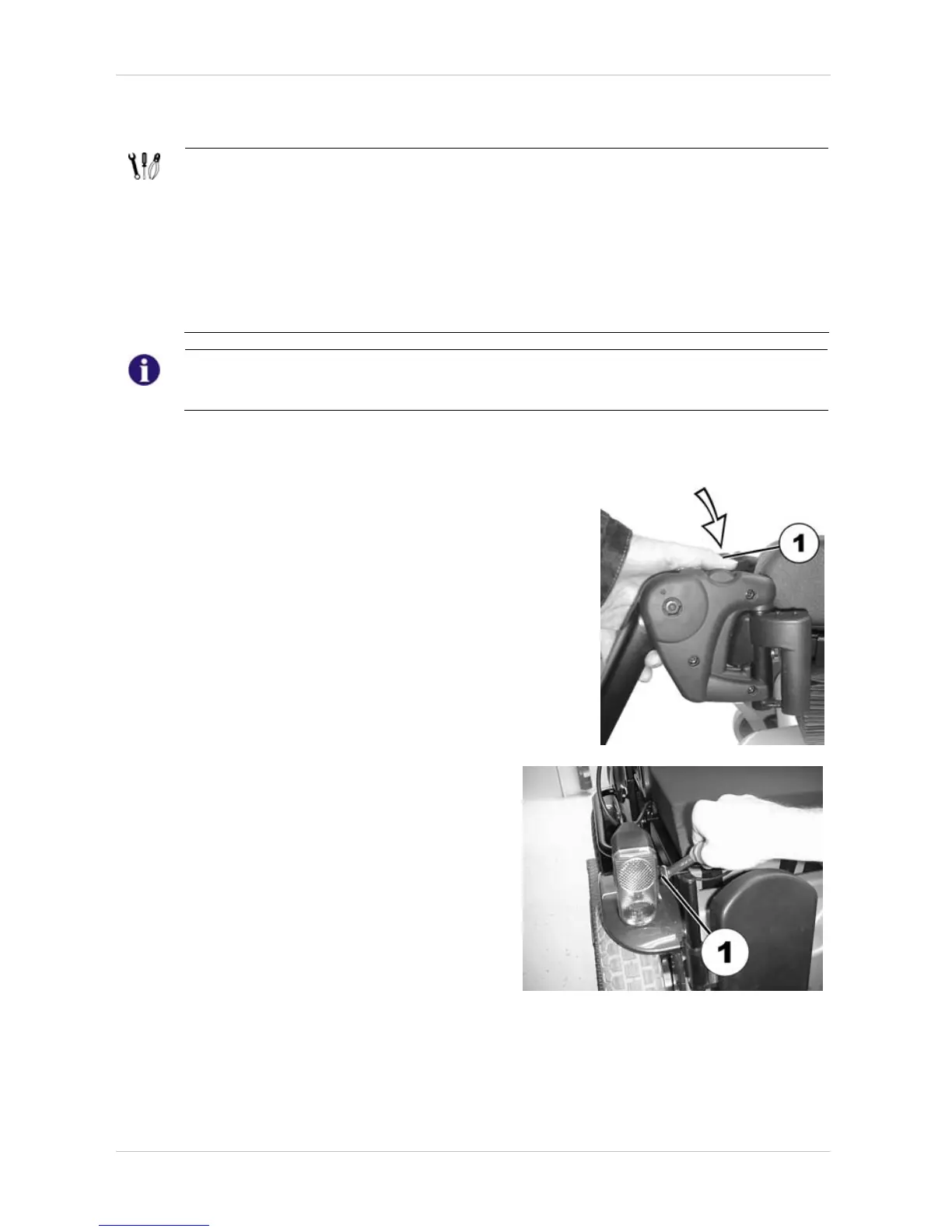

Removing the swing-away legrests
• Press the unlocking button (1) and swivel the footrest
outward.
• Remove the footrest in an upward direction.
Removing the fixed legrests
• Loosen the fixation screw with open-end
spanner 13 mm.
• Pull legrest out toward the front.
