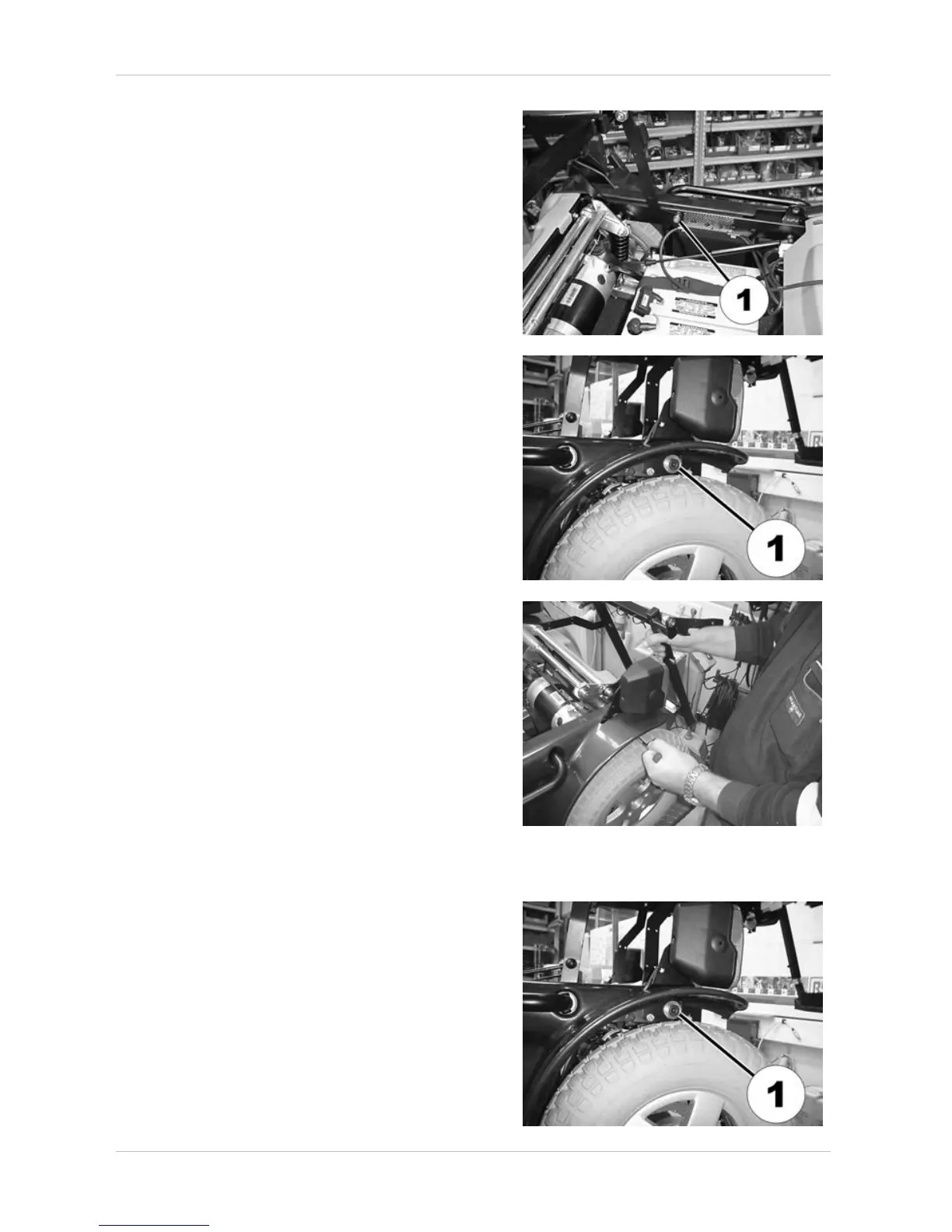

• Loosen and remove the fixation screws of the
rear swinging arms of the seat support, using
an Allen key 6 mm.
• The front fixation screws of the seat support
are located on the left and right sides under
the fenders of the front wheels.
• Loosen and remove the screws with an Allen
key 6 mm.
• The seat support can now be removed.
7.11.3 Assembly
• Re-assembly is carried out in the reverse
order to disassembly.
• Use a medium strength threadlocker, like
Loctite 243 or OmniFit 100M when inserting
the front fixation screws of the seat support.
• Perform a test drive.
