Invacare G50 - 7.4.3 Removing the side cowling

Invacare
®
- G50
SERVICE INSTRUCTIONS
33

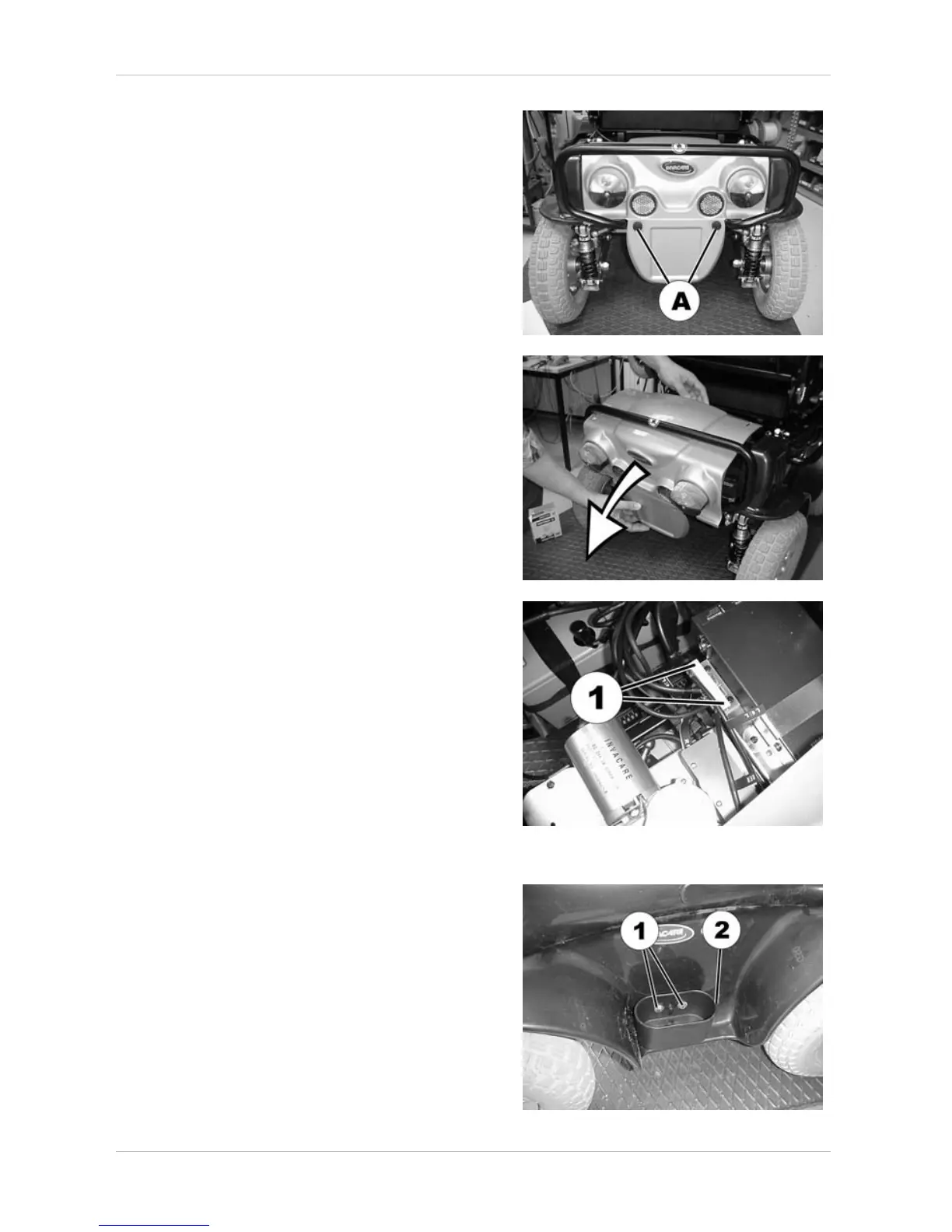

• Loosen and remove the knurled screw (A).
• Pull cowling upwards and backwards.
• Disconnect the plug-in connections (1) of the
rear lighting.
7.4.3 Removing the side cowling
With a cane holder
• Loosen and remove the fixation screws of the
cane holder, using the open-end spanner
8 mm.
• Loosen and remove the additional lateral
fixation screws of the side cowling (2,
concealed by the cane holder in the picture)
with the Allen key 3 mm .
