SERVICE INSTRUCTIONS
93
7.18 Retrofitting the joystick left/right
Note
If the Powerchair is equipped with a height-adjustable, swing away joystick box bracket, then an
appropriate joystick box bracket for the other side must be ordered from Invacare.
Requirements:
• 6 mm Allen key
Note
Please keep small parts such as screws and grommets safe during dismantling. Lay all small
parts down in such a way that they can be re-fitted in the correct order.

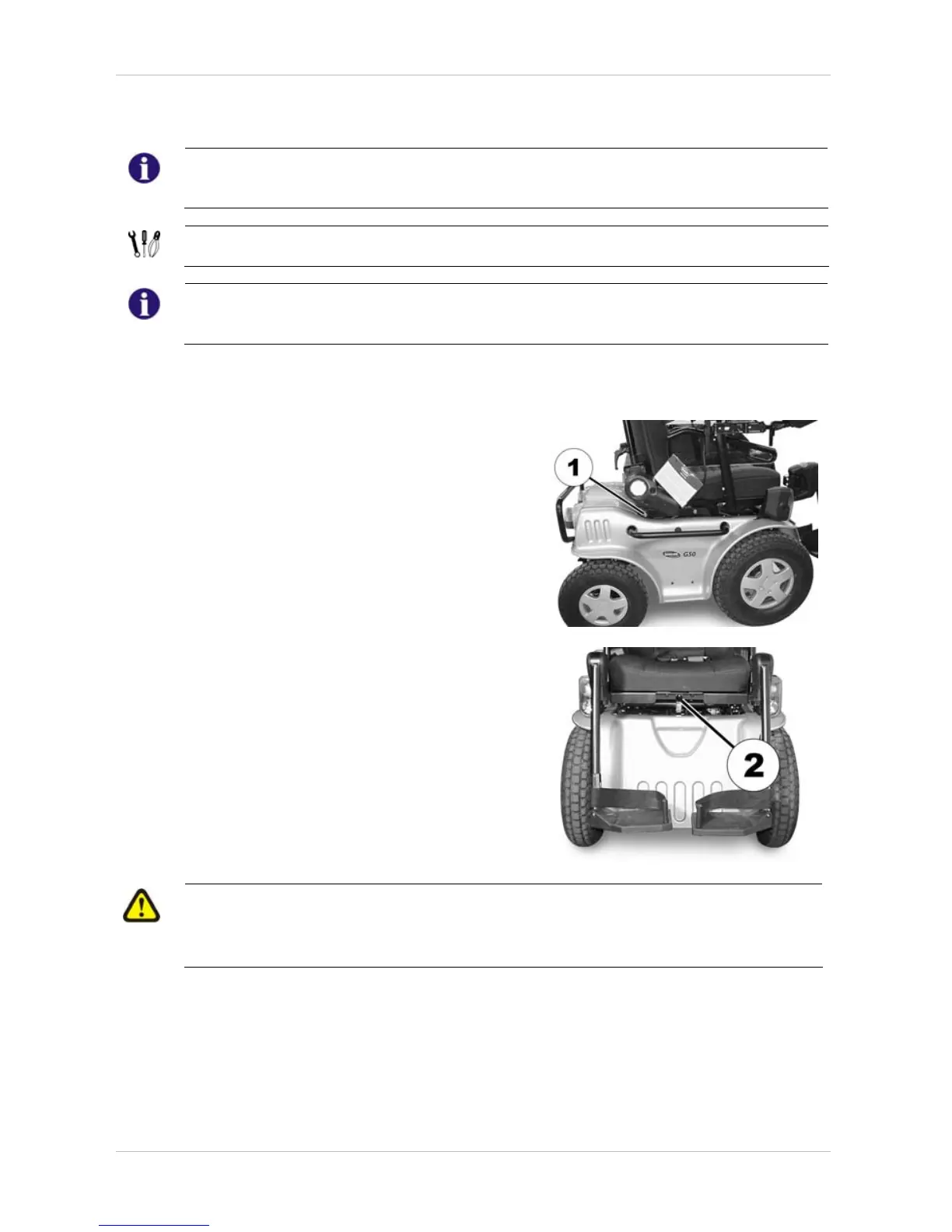

7.18.1 Placing seat in service position
• Use the Allen key 6 mm to loosen the screws (1)
on both sides and remove.
The seat release button is to be found at the front
underneath the edge of the seat (2).
CAUTION!
Damage to the wheelchair due to careless tipping of seat!
• When tipping the seat, make sure the fixation brackets of the backrest do not damage the
side or rear cowlings!
