Invacare G50 - 7.6.2 Assembly

SERVICE INSTRUCTIONS
Invacare
®
- G50
46

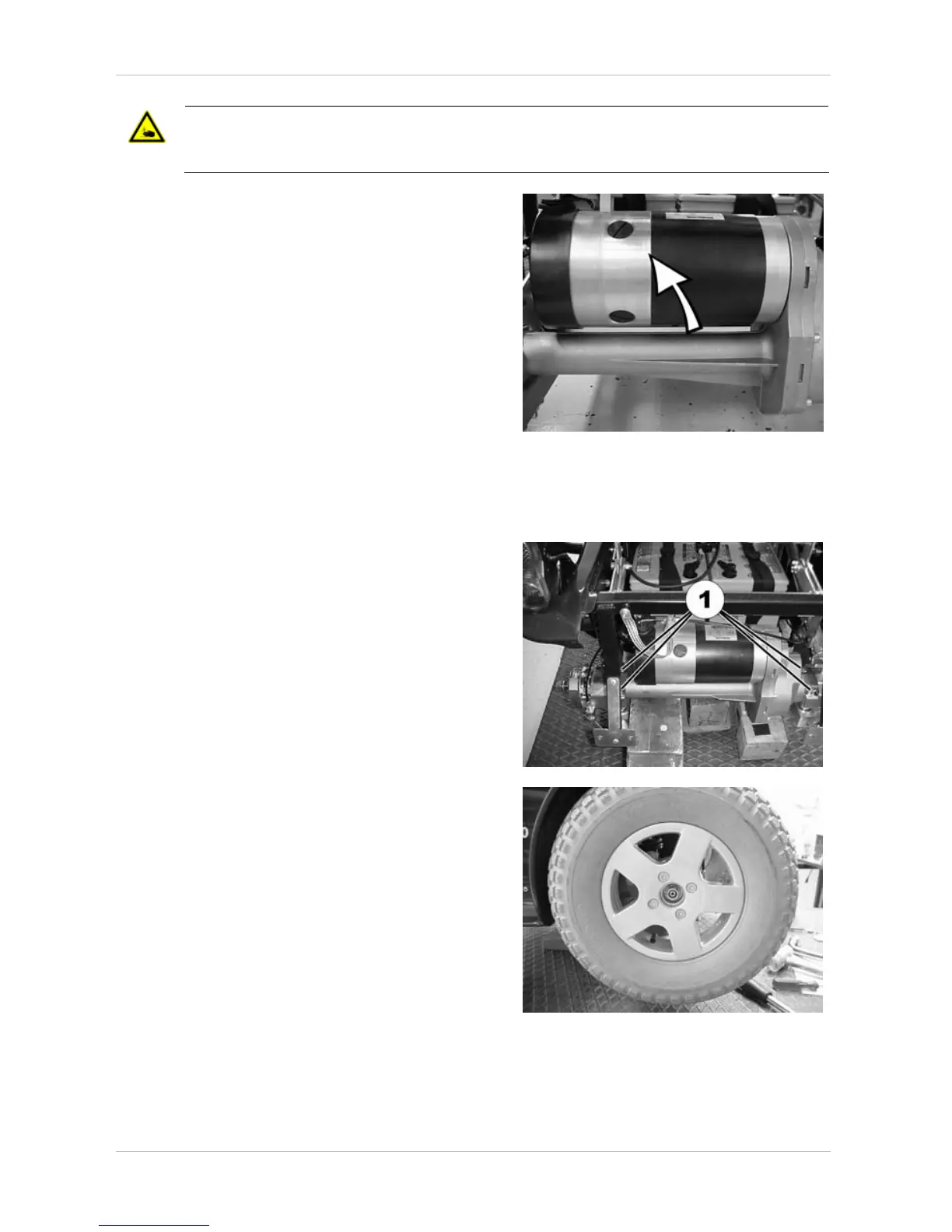

ATTENTION: Danger of injury by crushing!
The dive unit is very heavy. Danger of injury to your hands!
• Please give consideration to the great weight.
• The drive unit can now be removed by pulling
it out towards the front.
7.6.2 Assembly
The process of re-assembly is done in reverse order.
• Position the new drive unit on the wooden
blocks.
• Position the brakes on the axles.
• Insert fixation bolts of the drive unit and
loosely fasten with the nuts.
• Mount wheels (fixation nuts do not need to be
completely tightened yet)
• Activate hand brake.
