SERVICE INSTRUCTIONS
49

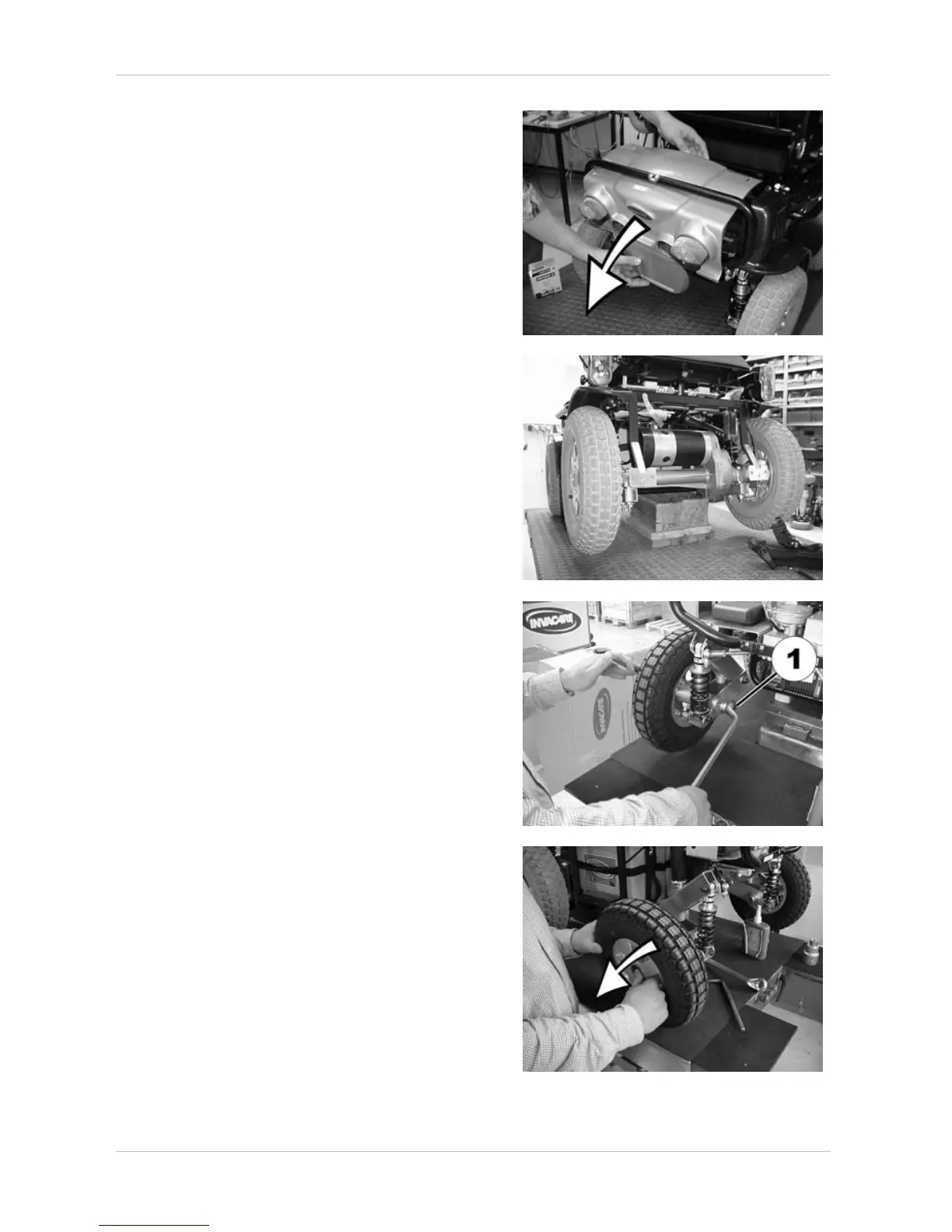

• Pull cowling upwards and backwards.
• Jack up wheelchair with wooden blocks under
the battery compartment. All wheels must be
clear of the ground and able to rotate freely.
• Loosen the nut (1), using the open-end
spanner 24 mm, while countering the axle
(dowel screw) from the other side with the
Allen key 10 mm so that it cannot turn.
• Remove the wheel and the axle.
