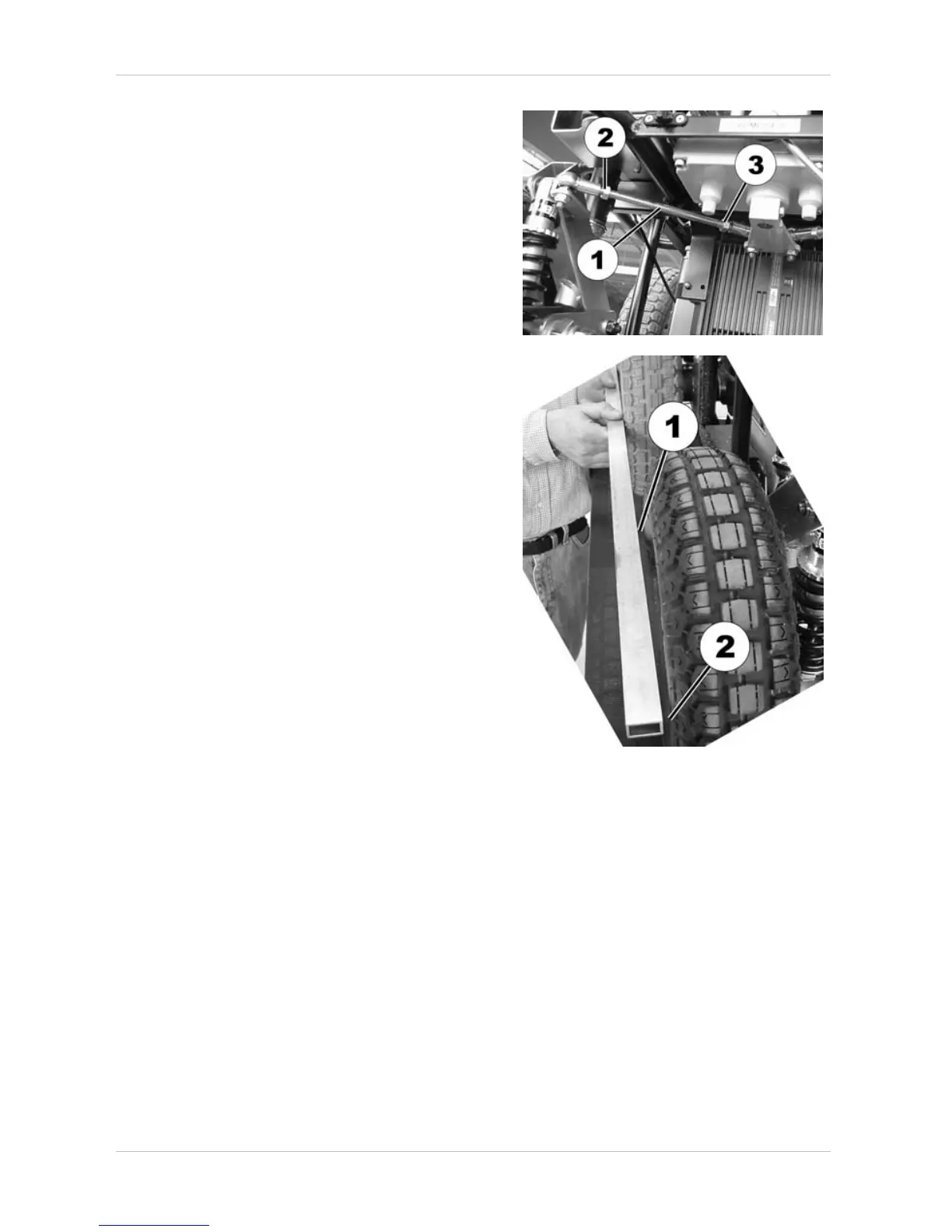

Adjusting the toe-in
The toe-in is adjusted by means of the steering
connecting rod (1).
• Loosen the counter nuts (2 and 3) of the
steering connecting rod, using the open-end
spanner 13 mm. Please note: The inner
counter nut (3) has a left-hand thread!
• Use the aluminium rail to check the toe-in.
The position of the drive wheel on the same
side serves as a reference. To do this, press
the rail firmly against the drive wheel.
• The toe-in is correctly adjusted when the
clearance between the steering wheel tyre
and the aluminium rail in the front area of the
wheel (1) is approximately 3 mm more than in
the rear (2).
• Tighten the counter nut the steering
connecting rod again.
• Perform a test drive.
