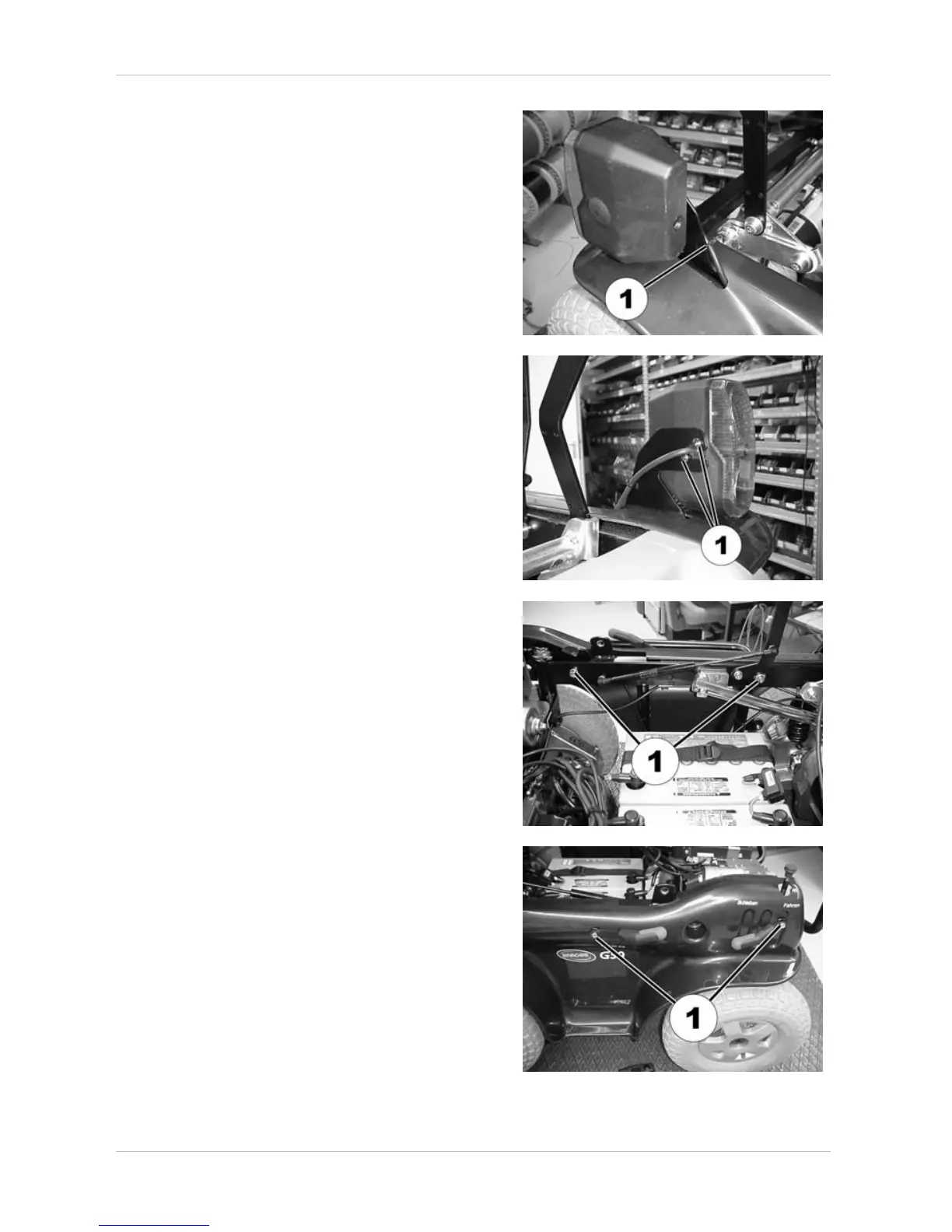

To be able to access the Bowden cables of the
hand brake, the side cowling on the side where
the brake lever is located needs to be removed.
• Cut the cable binder (1) of the headlight cable
with the pair of diagonal-nosed cutting pliers.
• Loosen and remove the fixation screws (1)
that hold the headlight, using the crosstip
screwdriver.
• Use the Allen key 6 mm to loosen and remove
the lateral fixation bolts (1) of the side handle.
• Loosen and remove the fixation screws (1) of
the brake and declutching levers, using the
cross-tip screwdriver .
