Invacare G50 - Page 96

SERVICE INSTRUCTIONS
Invacare
®
- G50
96

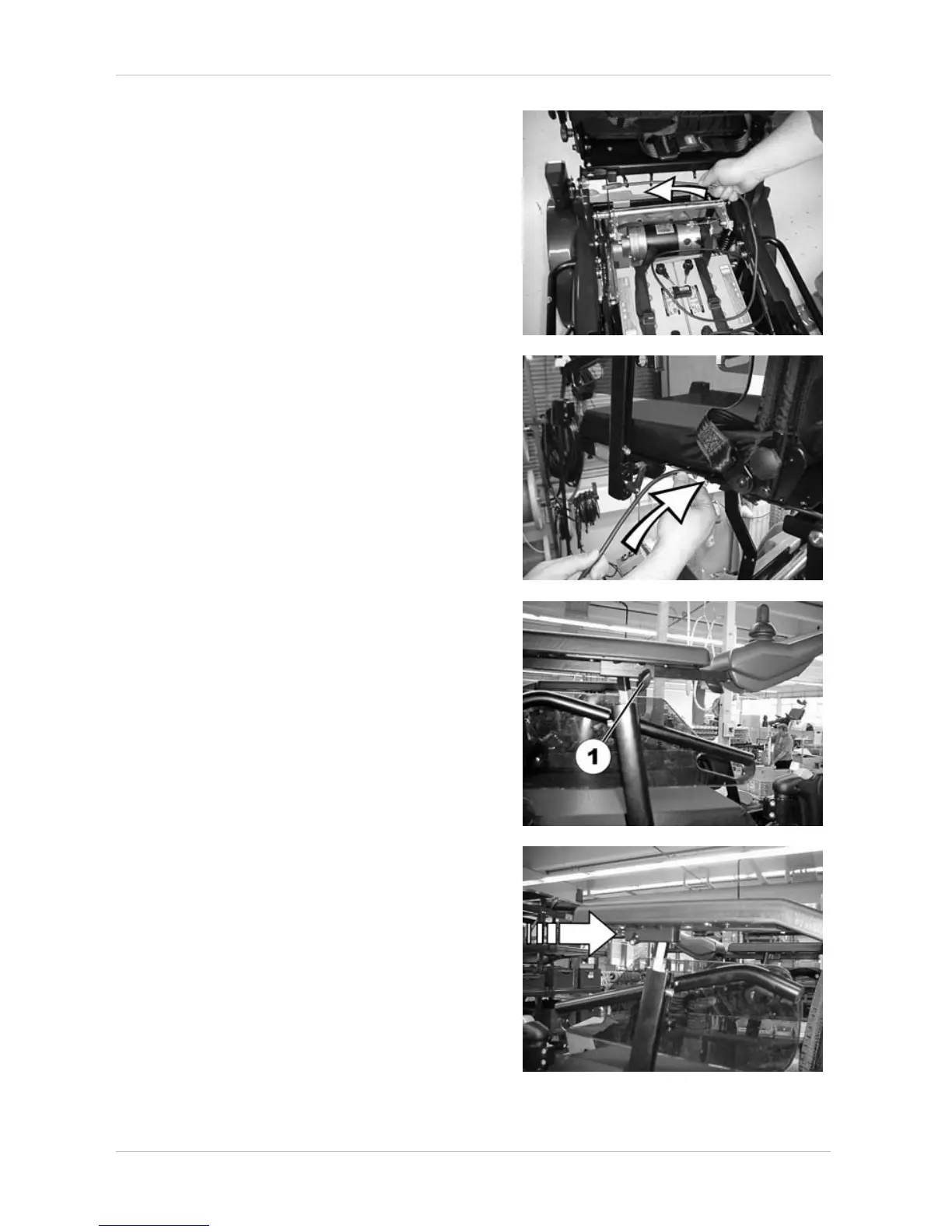

• Push the bus cable through the loops of the
reusable cable binders on the other side.
• Carefully press the bus cable into the cable
clips under the edge of the seat.
• Loosen and remove the fixation screw (1) of
the joystick box bracket.
• Remove the joystick box along with the
joystick box bracket.
• Insert the joystick box with the joystick box
bracket on the other side.
• Insert and tighten the fixation screw.
• Connect the bus cable to the Joystick Box.
• Perform a test drive.
