Hardware Operations
2.5 System Memory
The motherboard supports 16 DDR3 DIMM slots, including Registered DIMMs (RDIMM),
Load Reduced DIMMs (LRDIMM) and Unbuffered DIMMs (UDIMM). There are four DIMM
channels per CPU, and 2 DIMM slots per channel. Data transfer rates can support DDR3
800/1066/1333/1600.

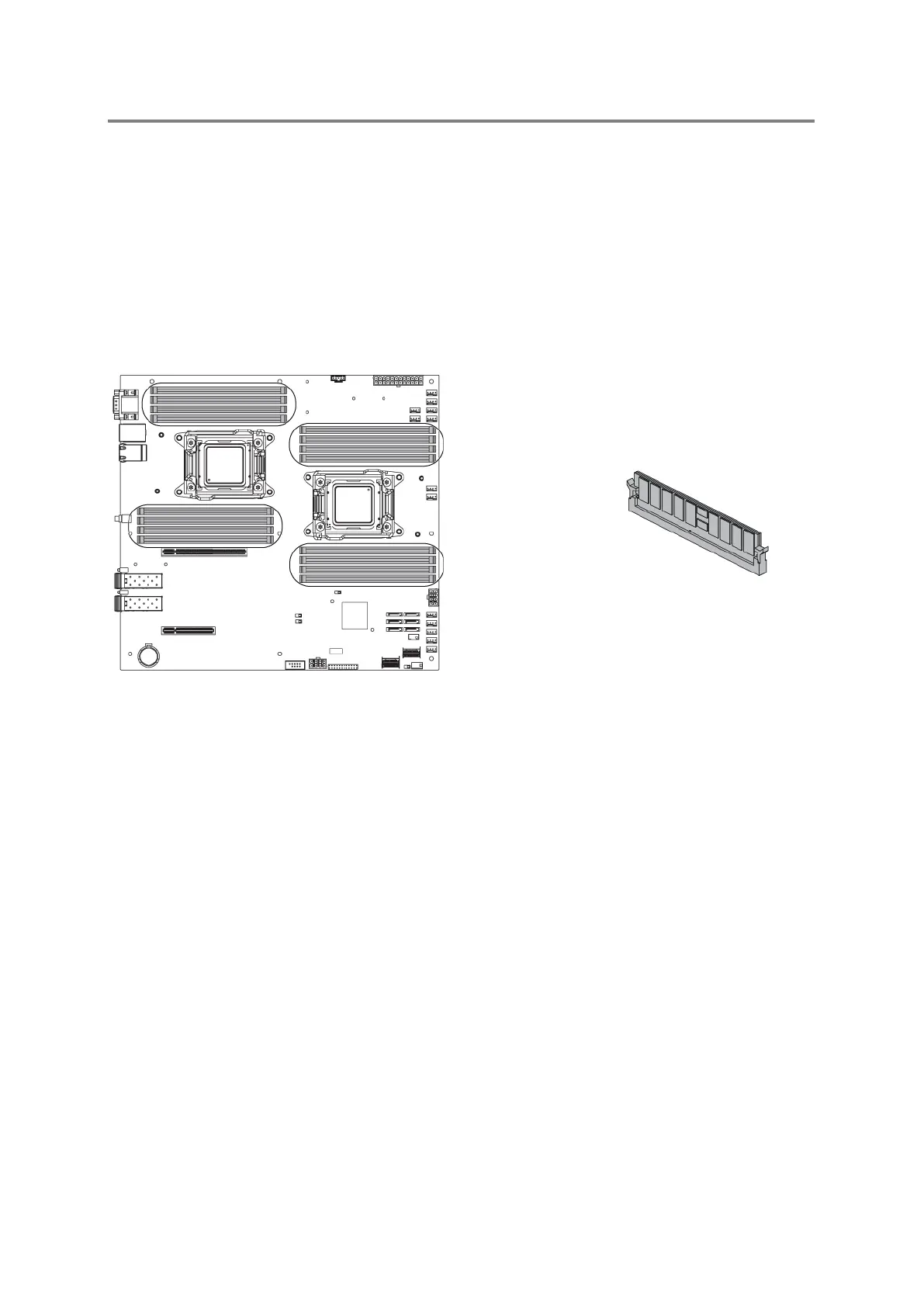

The location of DIMM sockets on the motherboard is shown below:
Figure 2-8 Location of System Memories
There are sixteen DIMMs on the motherboard to support the processor. The DIMM
sequence of sixteen DIMM sockets is respectively shown below.
