3.13 COM and VGA Ports (J92)

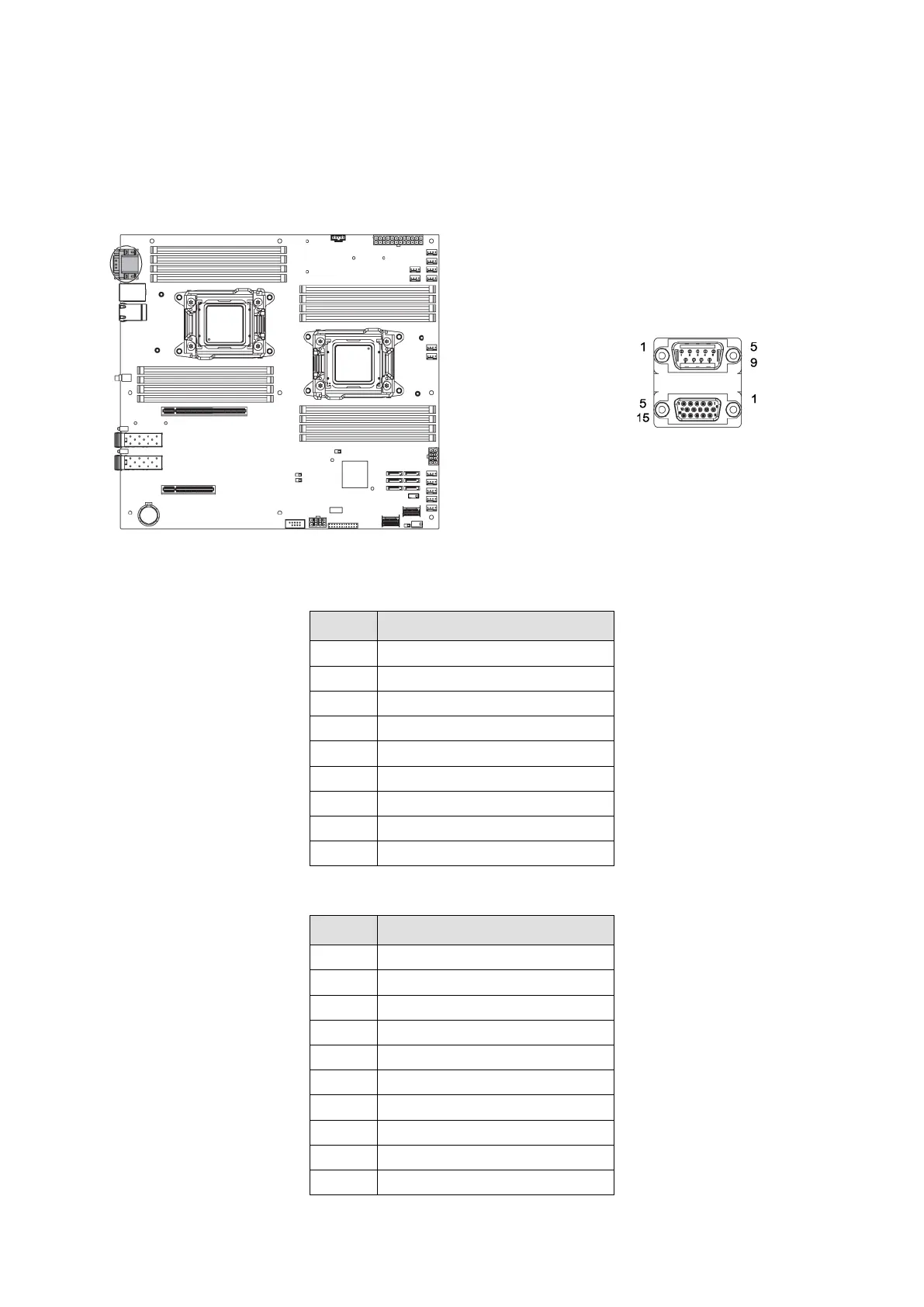

Figure 3-15 VGA and COM Ports
Table 3-36 Pin Definition of COM (Up) Port (J92)
Pin
Signal Name
1
COM1_RES_DCD
2
COM1_RES_RX_N
3
COM1_RES_TX_N
4
COM1_RES_DTR
5
Ground
6
COM1_RES_DSR
7
COM1_RES_RTS
8
COM1_RES_CTS
9
COM1_RES_RI
Table 3-37 Pin Definition of VGA (Down) Port (J92)
Pin
Signal Name
P1
VGA_G0_RED_L
P2
VGA_G0_GREEN_L
P3
VGA_G0_BLUE_L
P4
NC
P5
Ground
P6
Ground
P7
Ground
P8
Ground
P9
P5V_VGA_CNTR
P10
Ground
