3.7 Mini SAS Connectors (J104, J105)

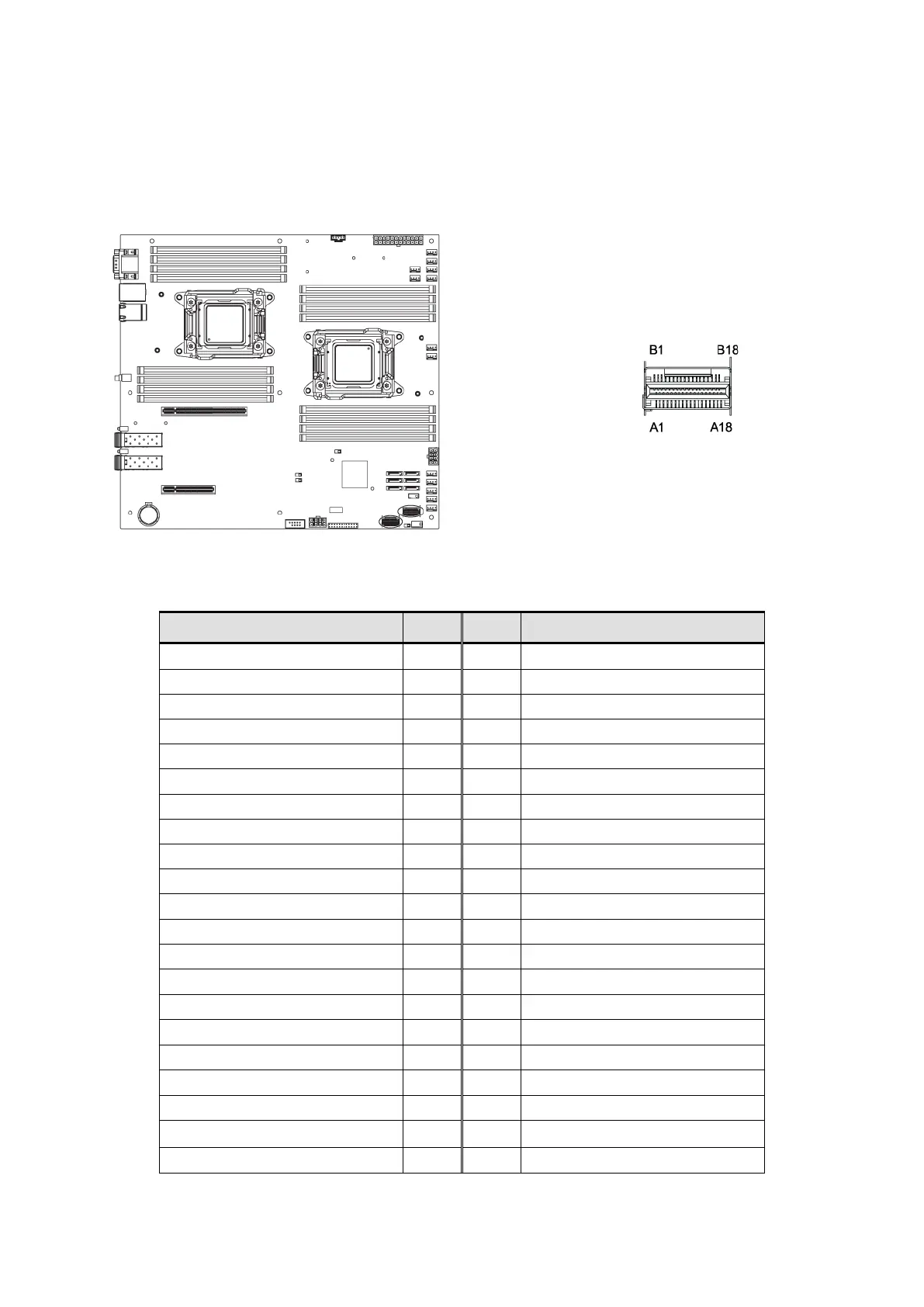

Figure 3-7 Mini SAS Connectors
Table 3-26 Pin Definition of Mini SAS Connectors (J104)
Signal Name
Pin
Pin
Signal Name
SAS_PCH_TX_C_DP<3>
B16
A16
SAS_PCH_RX_C_DP<3>
SAS_PCH_TX_C_DN<3>
B17
A17
SAS_PCH_RX_C_DP<3>
SAS_PCH_TX_C_DP<2>
B13
A13
SAS_PCH_RX_C_DP<2>
SAS_PCH_TX_C_DN<2>
B14
A14
SAS_PCH_RX_C_DP<2>
SAS_PCH_TX_C_DP<1>
B5
A5
SAS_PCH_RX_C_DP<1>
SAS_PCH_TX_C_DN<1>
B6
A6
SAS_PCH_RX_C_DP<1>
SAS_PCH_TX_C_DP<0>
B2
A2
SAS_PCH_RX_C_DP<0>
SAS_PCH_TX_C_DN<0>
B3
A3
SAS_PCH_RX_C_DP<0>
TP_PCH_SAS1_SIDEBAND6
B11
A11
SGPIO_SAS1_DATAIN_F
Ground
B10
A10
SGPIO_SAS1_DATAOUT_F
SGPIO_SAS1_LOAD_F
B9
A9
Ground
SGPIO_SAS1_CLOCK_F
B8
A8
TP_PCH_SAS1_SIDEBAND7
Ground
B1
A1
Ground
Ground
B4
A4
Ground
Ground
B7
A7
Ground
Ground
B12
A12
Ground
Ground
B15
A15
Ground
Ground
B18
A18
Ground
Ground
B19
B26
Ground
Ground
B20
B25
Ground
Ground
B21
B24
Ground
