Inventec B800 - Front USB Connector (J17); Figure 3-9 Front USB Connector; Table 3-29 Pin Definition of Front USB Connector (J17)

46
3.9 Front USB Connector (J17)

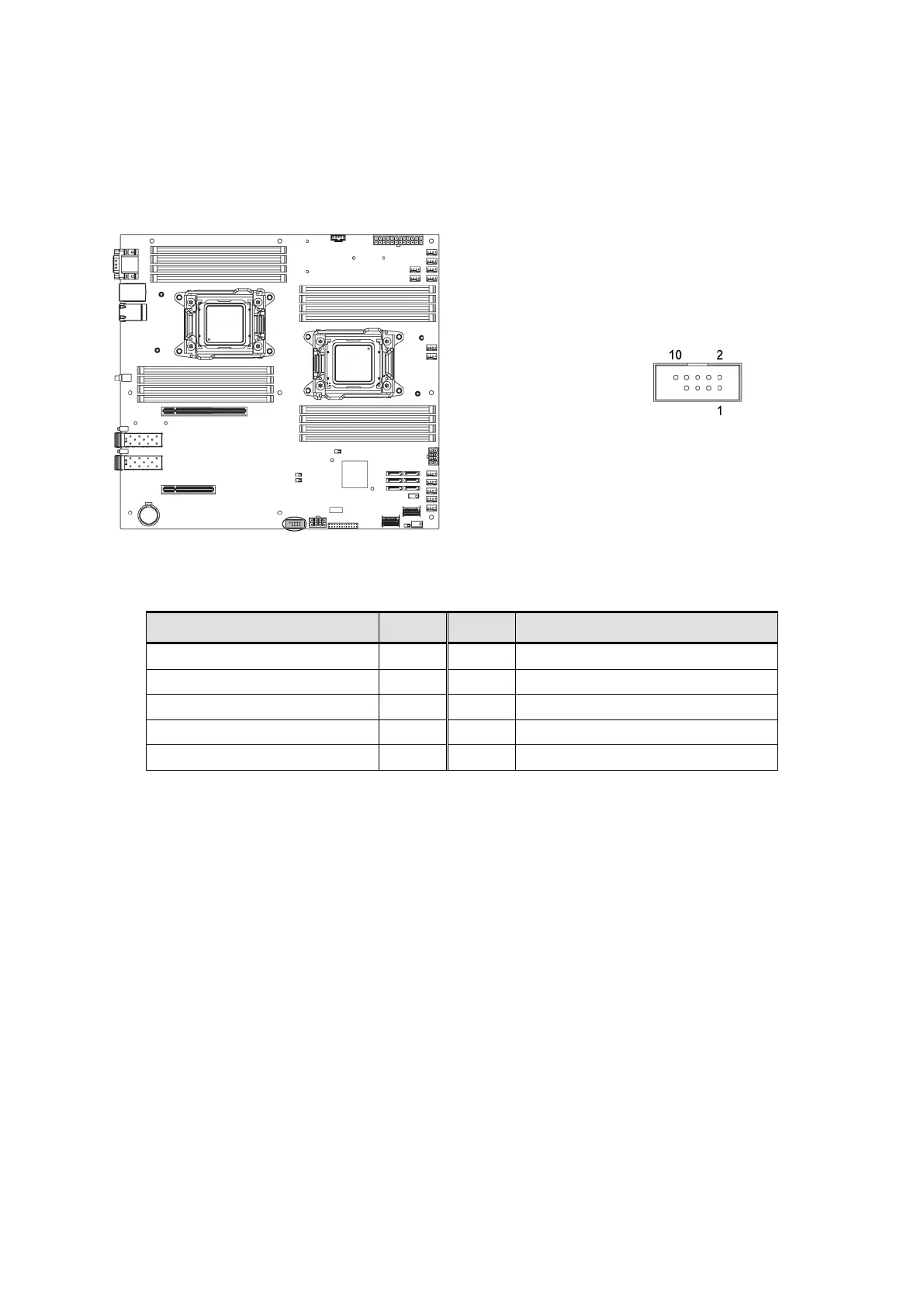

Figure 3-9 Front USB Connector
Table 3-29 Pin Definition of Front USB Connector (J17)
Signal Name
Pin
Pin
Signal Name
P5V_USB89
1
2
P5V_USB89
USB8_SB_L_DN
3
4
USB9_SB_L_DN
USB8_SB_L_DP
5
6
USB9_SB_L_DP
Ground
7
8
Ground
10
-
