Inventec B800 - Power Connector (J89); Figure 3-2 Power Connector; Table 3-2 Pin Definition of Power Connector (J89)

33
3.2 Power connector (J89)

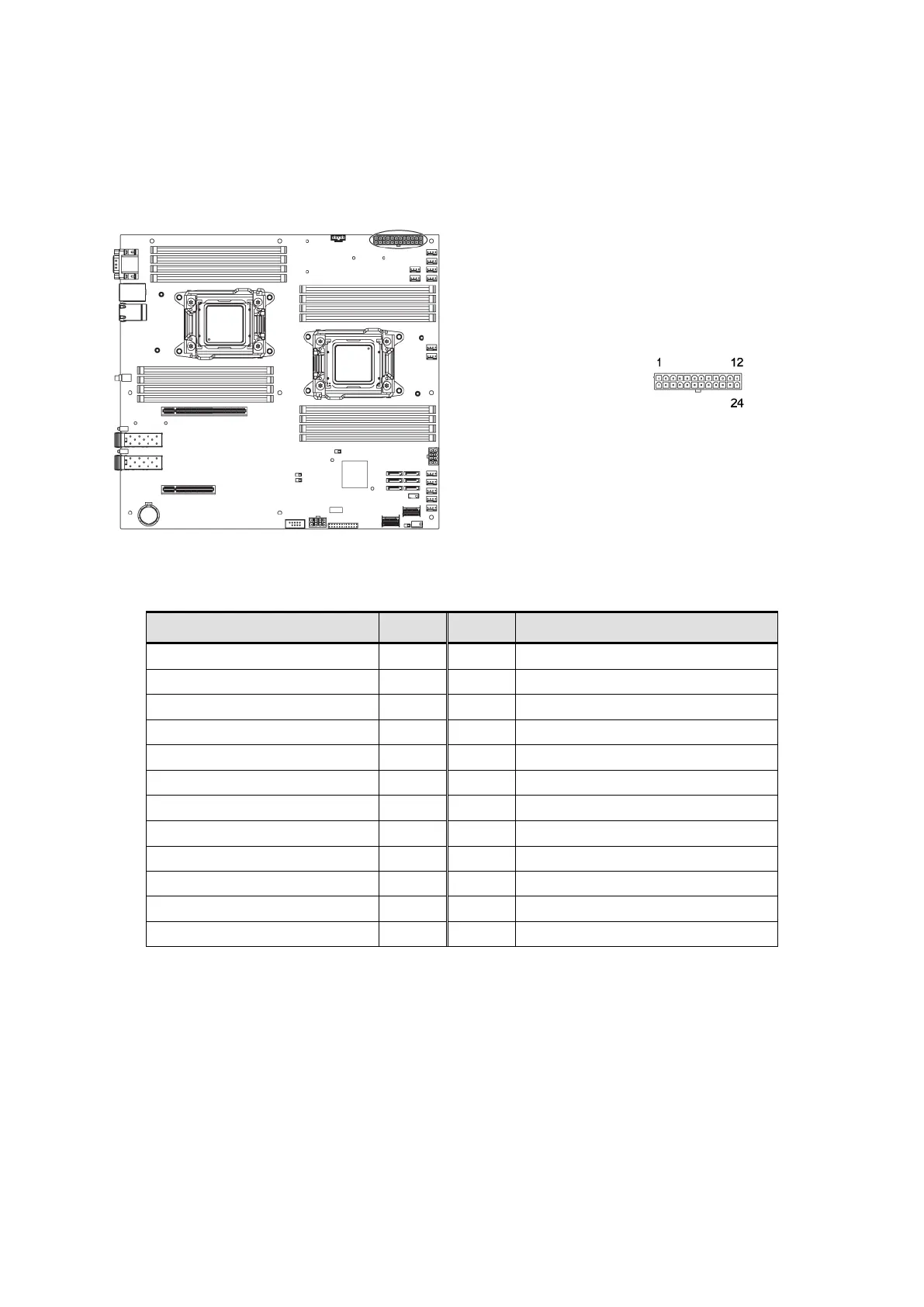

Figure 3-2 Power Connector
Table 3-2 Pin Definition of Power Connector (J89)
Signal Name
Pin
Pin
Signal Name
P3V3
1
13
P3V3
P3V3
2
14
N12V
Ground
3
15
Ground
P5V
4
16
PS_EN_PSU_N
Ground
5
17
Ground
P5V
6
18
Ground
Ground
7
19
Ground
PGD_PSU_PWROK_5V
8
20
NC
P5V_AUX
9
21
P5V
P12V
10
22
P5V
P12V
11
23
P5V
P3V3
12
24
Ground
