3 Connectors, Jumpers and Switches
The locations of all the connectors described in this chapter are shown in “1.4 Connectors and
Component Locations”.
“Key” stands for foolproof feature; “NC” stands for unused.
3.1 Power Management Connector (J98)

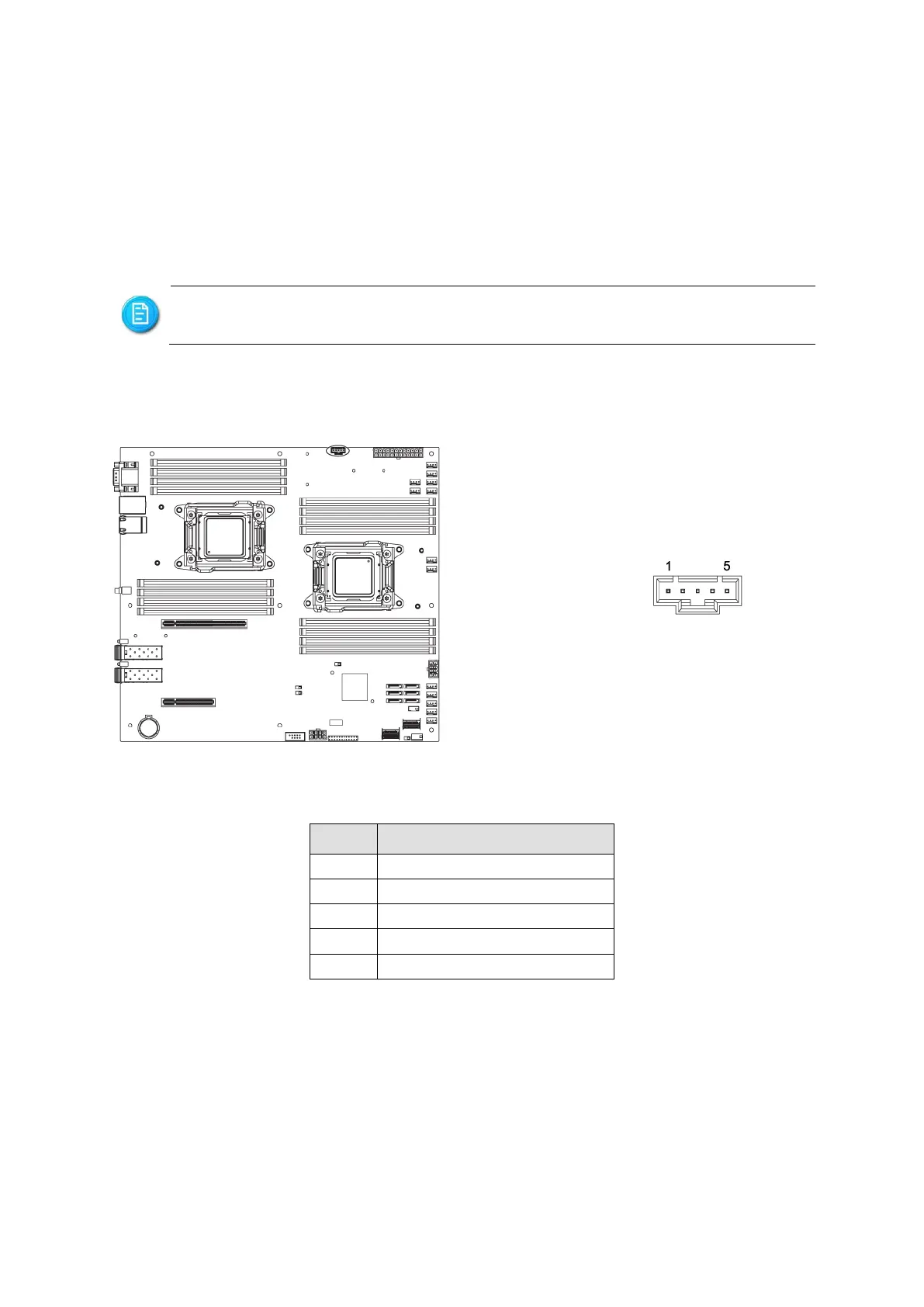

Figure 3-1 Power Management Connector
Table 3-1 Pin Definition of Power Management Connector (J98)
Pin
Signal Name
1
I2C_PSU_SCL
2
I2C_PSU_SDA
3
I2C_PSU_ALERT_R_N
4
Ground
5
P3V3SB_I2C_PSU
