Inventec B800 - To Install a DIMM; To Remove a DIMM

Hardware Operations
28
2.5.2 To remove a DIMM
Unlock a DIMM socket by pressing the retaining clips outward. This action releases the
module and partially lifts it out of the socket.
Lift out the DIMM.

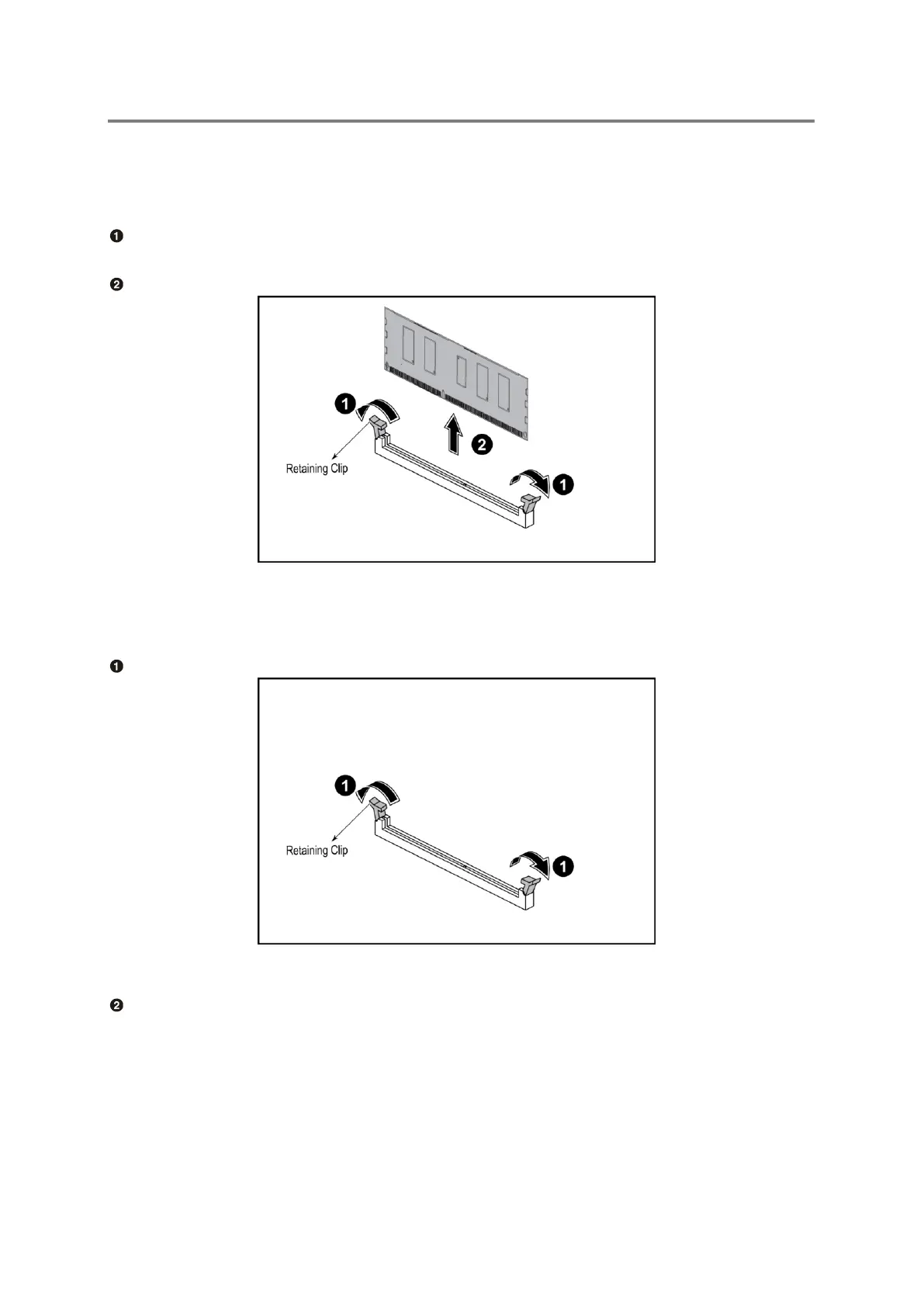

Figure 2-12 Lifting the DIMM out of the Socket
2.5.3 To install a DIMM
Unlock a DIMM socket by pressing the retaining clips outward.
Figure 2-13 Pressing the Retaining Clips Outward
Align the notch on the DIMM to the break on the socket. Carefully insert the DIMM into
the socket until the retaining clips snap back in place.
