Inventec B800 - SGPIO Connector (J46); Figure 3-6 SGPIO Connector; Table 3-25 Pin Definition of SGPIO Connector (J46)

42
3.6 SGPIO Connector (J46)

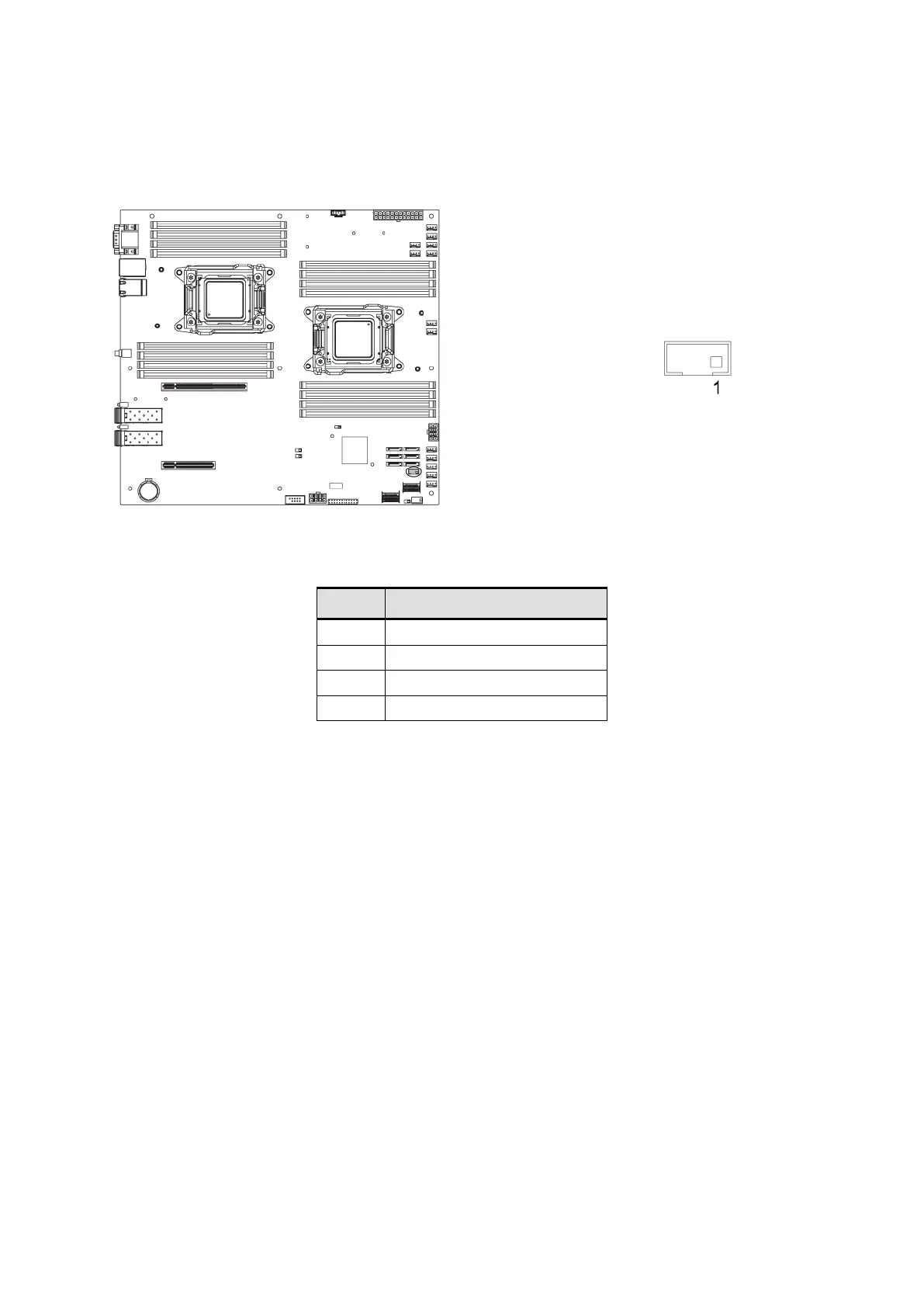

Figure 3-6 SGPIO Connector
Table 3-25 Pin Definition of SGPIO Connector (J46)
Pin
Signal Name
1
SGPIO_SATA_CLK
2
SGPIO_SATA_LOAD
3
SGPIO_SATA_DOUT0
4
SGPIO_SATA_DOUT1
