Inventec B800 - Gbe NIC LAN Port (J21); Figure 3-14 Gbe NIC Ports; Table 3-35 Pin Definition of Gbe NIC Ports (J21) [For Gbe SKU]

53
Pin
Signal Name
19
LED_BCM5221_LINKUP_R_N
20
P3V3_STBY
21
LED_BCM5221_ACT_R_N
22
P3V3_STBY
3.12.2 Gbe NIC LAN port (J21)
Gbe NIC LAN port is for Gbe SKU.

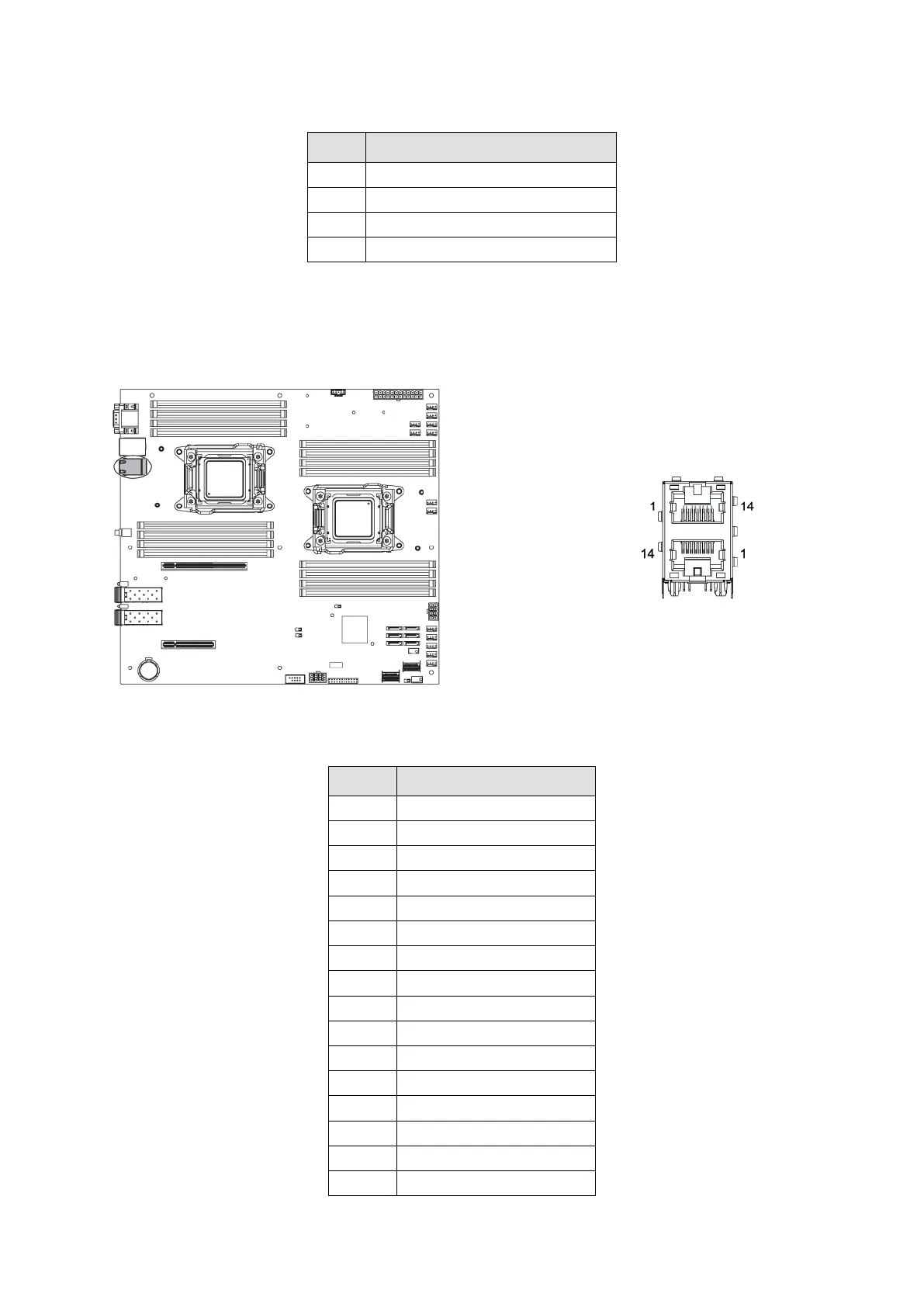

Figure 3-14 Gbe NIC Ports
Table 3-35 Pin Definition of Gbe NIC Ports (J21) [for Gbe SKU]
Pin
Signal Name
1
NIC2_MDI_0_DN
2
NIC2_MDI_0_DP
3
NIC2_MDI_1_DN
4
NIC2_MDI_1_DP
5
NIC2_MDI_2_DN
6
NIC2_MDI_2_DP
7
NIC2_MDI_3_DN
8
NIC2_MDI_3_DP
9
P1V8_STBY
10
Ground
11
NIC1_MDI_0_DN
12
NIC1_MDI_0_DP
13
NIC1_MDI_1_DN
14
NIC1_MDI_1_DP
15
NIC1_MDI_2_DN
16
NIC1_MDI_2_DP
