34
3.3 Fan Connectors (J106, J107, J108, J109, J110, J111, J112, J113, J114,
J115, J116, J117, J118, J119)

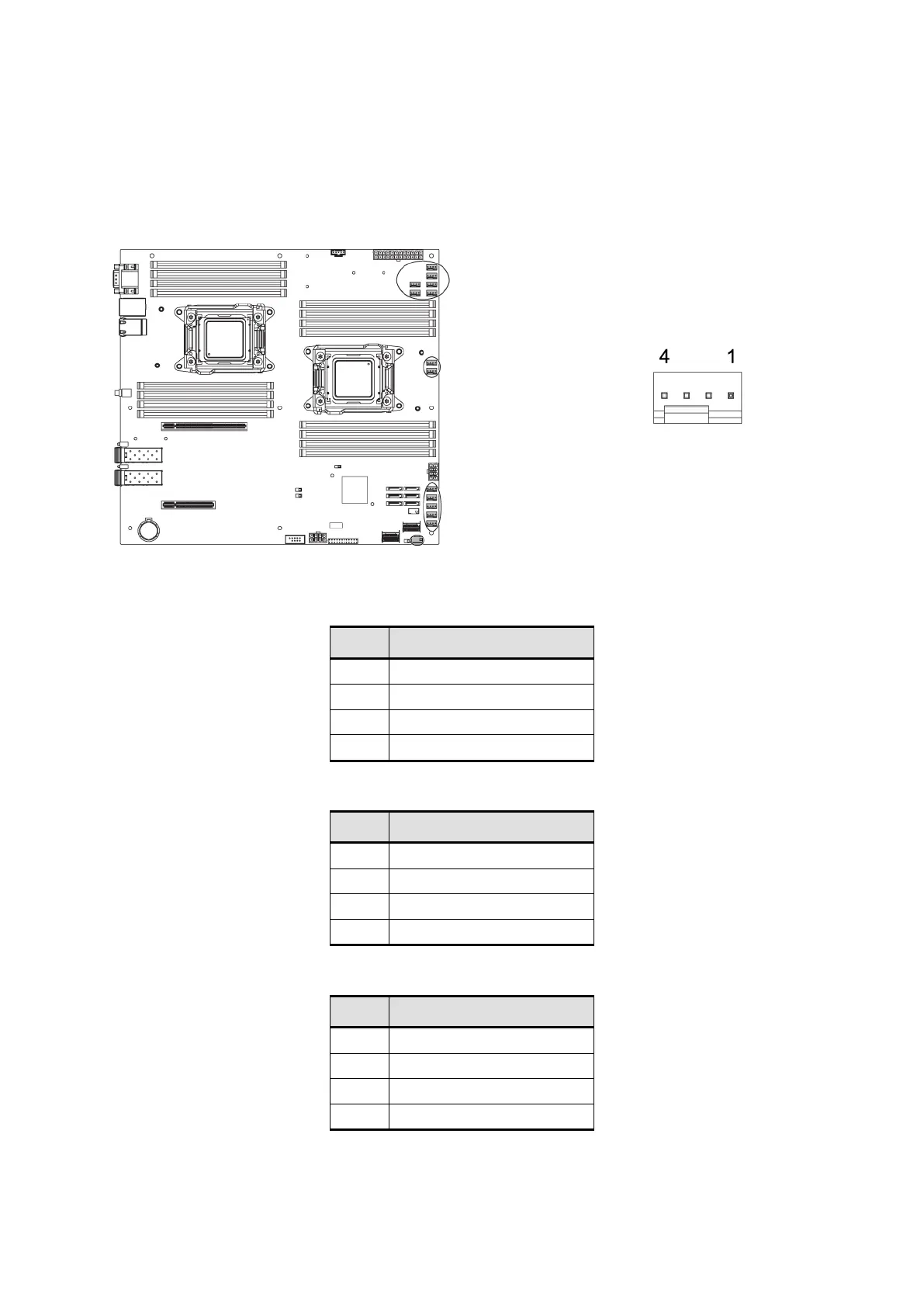

Figure 3-3 Fan Connector
Table 3-3 Pin Definition of Fan Connector (J106)
Pin
Signal Name
1
BMC_FAN_PWM_1_R
2
BMC_FAN_TACH_1_R
3
P12VA
4
Ground
Table 3-4 Pin Definition of Fan Connector (J107) [Optional]
Pin
Signal Name
1
BMC_FAN_PWM_8_R
2
BMC_FAN_TACH_8_R
3
P12VA
4
Ground
Table 3-5 Pin Definition of Fan Connector (J108)
Pin
Signal Name
1
BMC_FAN_TACH_2_R
2
BMC_FAN_PWM_2_R
3
P12VA
4
Ground
Table 3-6 Pin Definition of Fan Connector (J109) [Optional]
