50
3.11 SFP Connectors (J28, J29)
SFP connectors are for 10Gbe SKU and the J28 is optional.

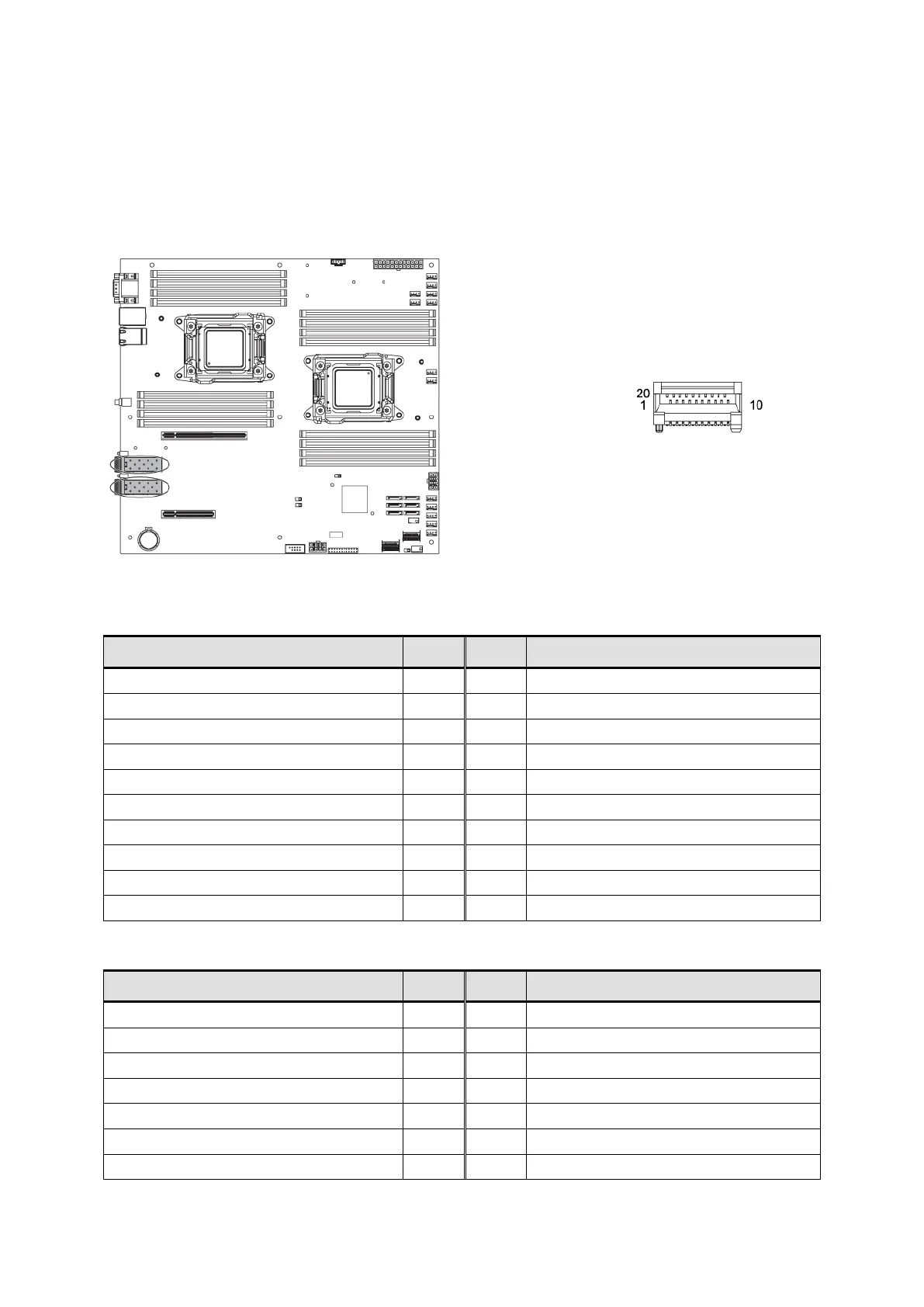

Figure 3-12 SFP Connectors
Table 3-32 Pin Definition of SFP connector (J28) [Optional for 10Gbe SKU]
Signal Name
Pin
Pin
Signal Name
Ground
1
20
Ground
NIANTIC_SPD1_7_TX_FAULT
2
19
NIANTIC_TX_P1_L0_DN
NIANTIC_SPD1_3_TX_DISABLE
3
18
NIANTIC_TX_P1_L0_DP
I2C_NIC_SDA_P1_R
4
17
Ground
I2C_NIC_SCL_P1_R
5
16
P3V3_SFP1
SPF_SPD1_2_MOD_ABS
6
15
P3V3_SFP1
NIANTIC_SPD1_6_RS0/1_SENSE
7
14
Ground
NIANTIC_SPD1_0_RX_LOS
8
13
NIANTIC_RX_P1_L0_DP
NIANTIC_SPD1_6_RS0/1_SENSE
9
12
NIANTIC_RX_P1_L0_DN
Ground
10
11
Ground
Table 3-33 Pin Definition of SFP connector (J29)
Signal Name
Pin
Pin
Signal Name
Ground
1
20
Ground
NIANTIC_SPD0_7_TX_FAULT
2
19
NIANTIC_TX_P0_L0_DN
NIANTIC_SPD0_3_TX_DISABLE
3
18
NIANTIC_TX_P0_L0_DP
I2C_NIC_SDA_P0_R
4
17
Ground
I2C_NIC_SCL_P0_R
5
16
P3V3_SFP0
SPF_SPD0_2_MOD_ABS
6
15
P3V3_SFP0
NIANTIC_SPD0_6_RS0/1_SENSE
7
14
Ground
