3.4 P12V Power Connector (J88, J20)

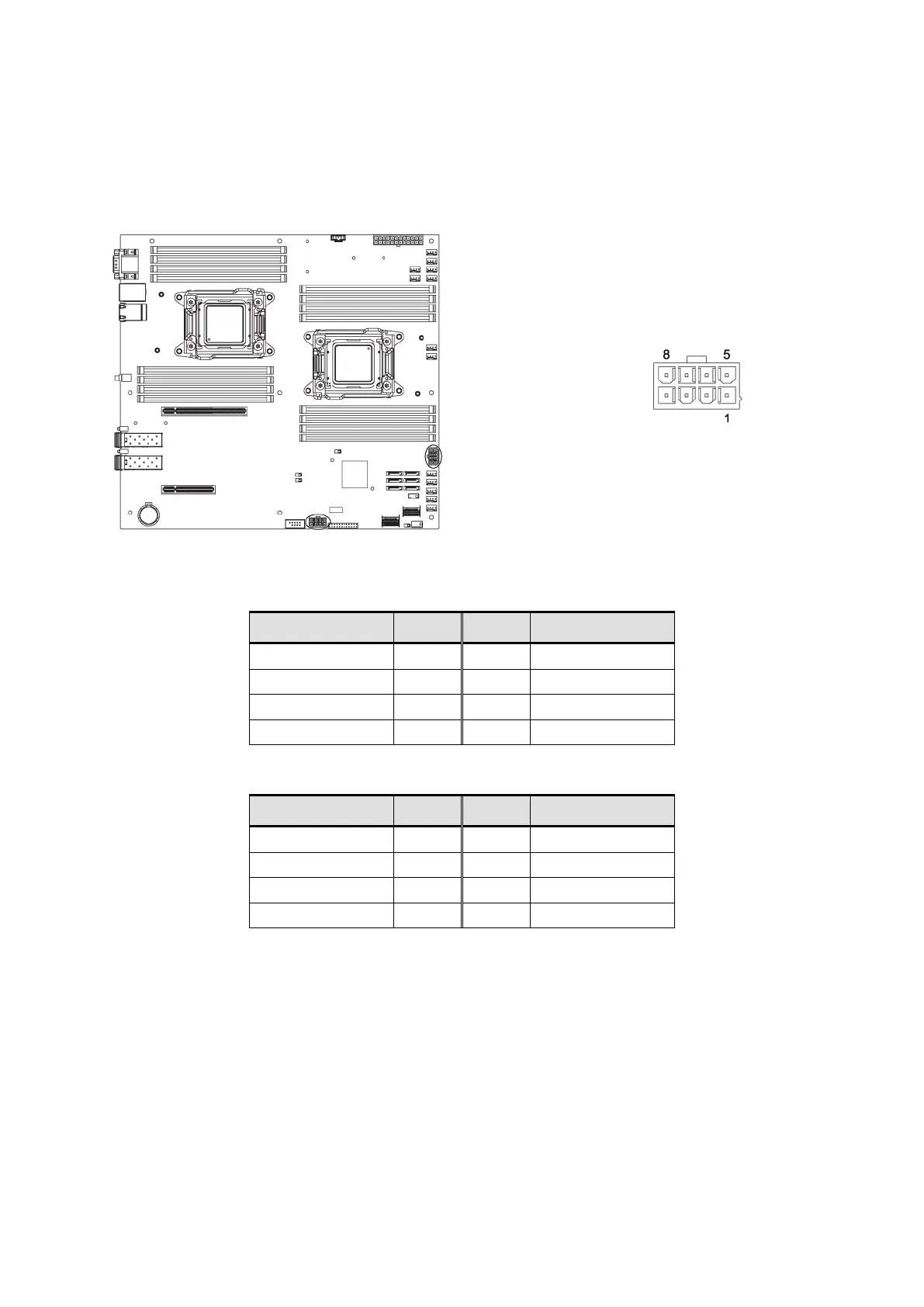

Figure 3-4 P12VB Power Connector
Table 3-17 Pin Definition of P12VA Power Connector (J88)
Signal Name
Pin
Pin
Signal Name
Ground
1
5
P12VA
Ground
2
6
P12VA
Ground
3
7
P12VA
Ground
4
8
P12VA
Table 3-18 Pin Definition of P12VB Power Connector (J20)
Signal Name
Pin
Pin
Signal Name
Ground
1
5
P12VB
Ground
2
6
P12VB
Ground
3
7
P12VB
Ground
4
8
P12VB
