3.12 NIC LAN and USB Ports (J95, J21)
3.12.1 Dedicate NIC and Rear USB Connector (J95)

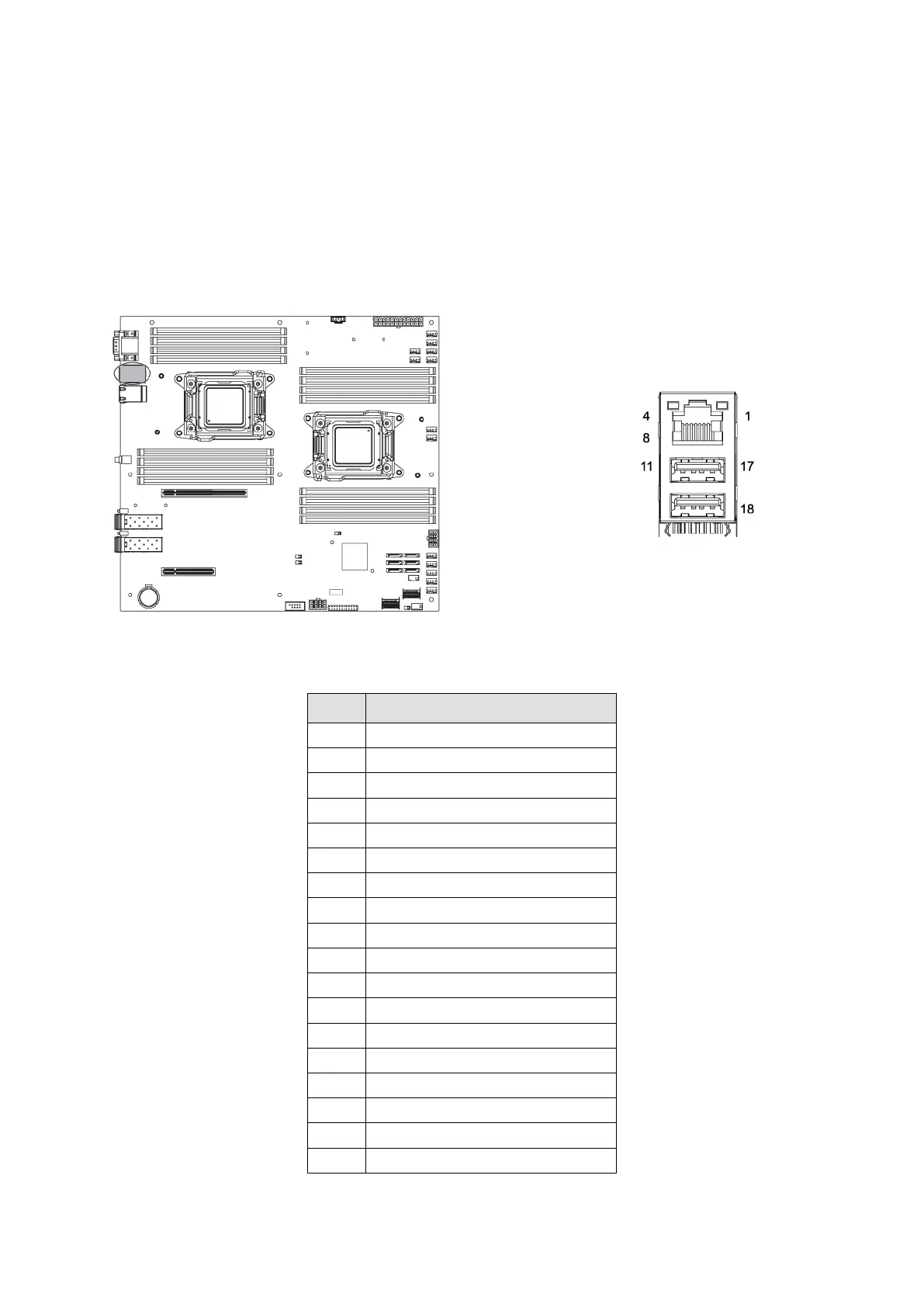

Figure 3-13 Dedicate NIC and Rear USB Connector
Table 3-34 Pin Definition of Dedicate NIC and Rear USB Connector (J95)
Pin
Signal Name
1
P5V_USB1011
2
USB10_SB_L_DN
3
USB10_SB_L_DP
4
Ground
5
P5V_USB1011
6
USB11_SB_L_DN
7
USB11_SB_L_DP
8
Ground
9
P2V5_PHY_AVDD
10
BCM5221_MDI_TX_DP
11
BCM5221_MDI_TX_DN
12
BCM5221_MDI_RX_DP
13
BCM5221_MDI_RX_DN
14
NC
15
NC
16
NC
17
NC
18
Ground
