Function
code
Name
Detailed instruction of parameters
Default
value
Modify
P10.20
Multi-step
speed 9
When terminal 1, terminal 2, terminal 3, terminal
4=OFF, the frequency input manner is selected via
code P00.06 or P00.07. When not all terminal 1,
terminal 2, terminal 3, terminal 4 are off, it runs at
multi-step which takes precedence of keypad, analog
value, high-speed pulse, communication frequency
setting.

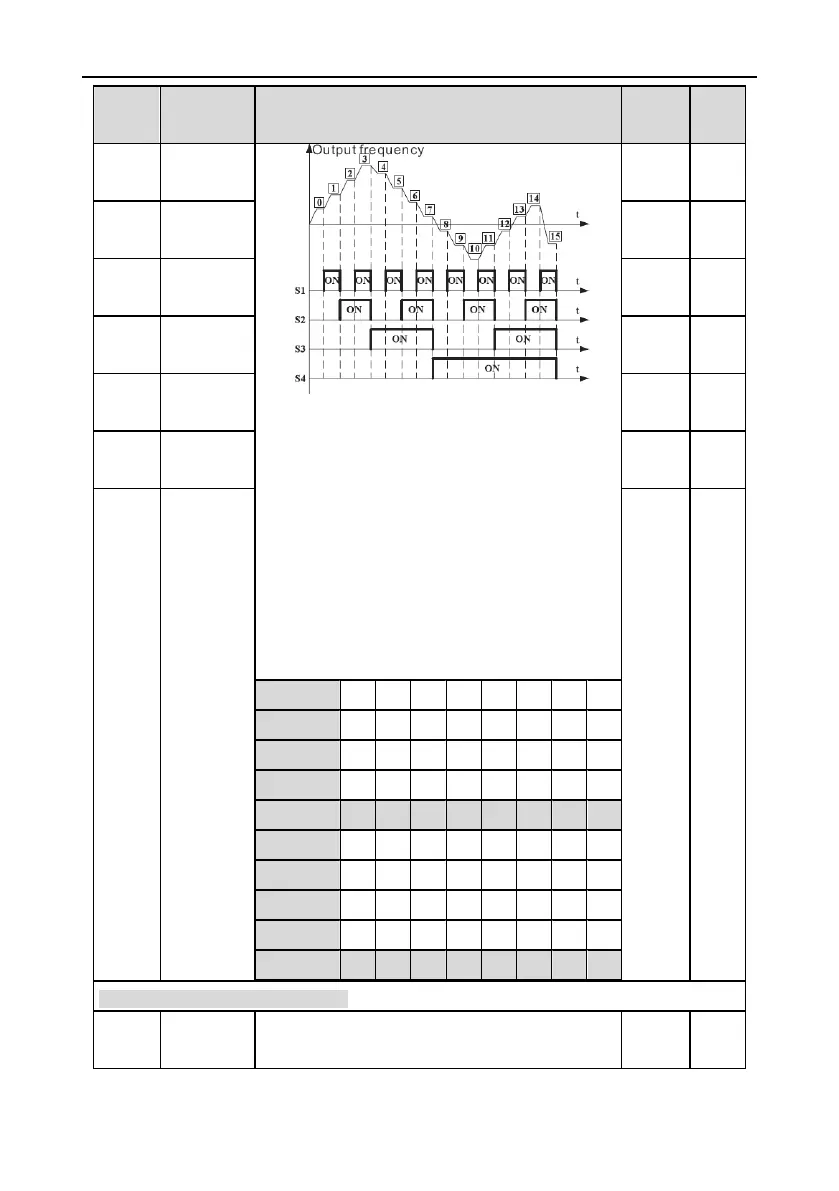

The relationship between terminal 1, terminal 2,
terminal 3, terminal 4 and multi-step speed is as
following:
Terminal 1
OFF
ON
OFF
ON
OFF
ON
OFF
ON
Terminal 2
OFF
OFF
ON
ON
OFF
OFF
ON
ON
Terminal 3
OFF
OFF
OFF
OFF
ON
ON
ON
ON
Terminal 4
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
Step
0
1
2
3
4
5
6
7
Terminal 1
OFF
ON
OFF
ON
OFF
ON
OFF
ON
Terminal 2
OFF
OFF
ON
ON
OFF
OFF
ON
ON
Terminal 3
OFF
OFF
OFF
OFF
ON
ON
ON
ON
Terminal 4
ON
ON
ON
ON
ON
ON
ON
ON
Step
8
9
10
11
12
13
14
15
0.0%
○
P10.22
Multi-step
speed 10
0.0%
○
P10.24
Multi-step
speed 11
0.0%
○
P10.26
Multi-step
speed 12
0.0%
○
P10.28
Multi-step
speed 13
0.0%
○
P10.30
Multi-step
speed 14
0.0%
○
P10.32
Multi-step
speed 15
0.0%
○
P11 Group Protective parameters
P11.01
Frequency
decreasing
0: Disable
1: Enable
0
○
