Goodrive300-19 series open loop vector inverter special for hosit Keypad operation procedure
-40-

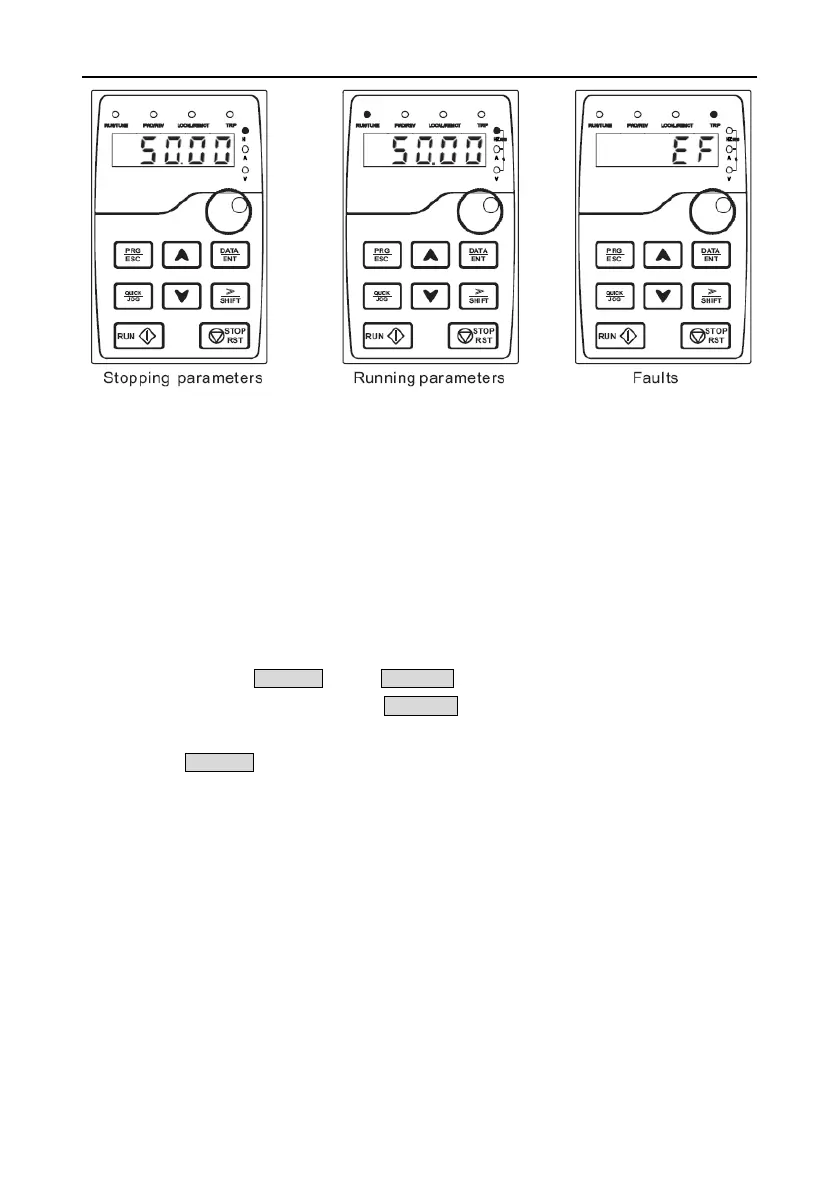

Fig 5-2 Displayed state
5.4 Keypad operation
Operate the inverter via operation panel. See the detailed structure description of function codes in
the brief diagram of function codes.
5.4.1 How to modify the function codes of the inverter
The inverter has the menu of three levels, which are:
1. Group number of function code (first-level menu)
2. Tab of function code (second-level menu)
3. Set value of function code (third-level menu)
Remarks: Press both the PRG/ESC and the DATA/ENT can return to the second-level menu from the
third-level menu. The difference is: pressing DATA/ENT will save the set parameters into the control
panel, and then return to the second-level menu with shifting to the next function code automatically;
while pressing PRG/ESC will directly return to the second-level menu without saving the parameters,
and keep staying at the current function code.
Under the third-level menu, if the parameter has no flickering bit, it means the function code cannot be
modified. The possible reasons could be:
1) This function code is not modifiable parameter, such as actual detected parameter, operation
records and so on;
2) This function code is not modifiable in running state, but modifiable in stop state.
Example: Set function code P00.01 from 0 to 1.
