Goodrive300-19 series open loop vector inverter special for hosit Peripherial options and parts
-239-
Peripherial options and parts Appendix C
C.1 What this chapter contains
This chapter describes how to select the options and parts of Goodrive300-19 series.
C.2 Peripherial wiring

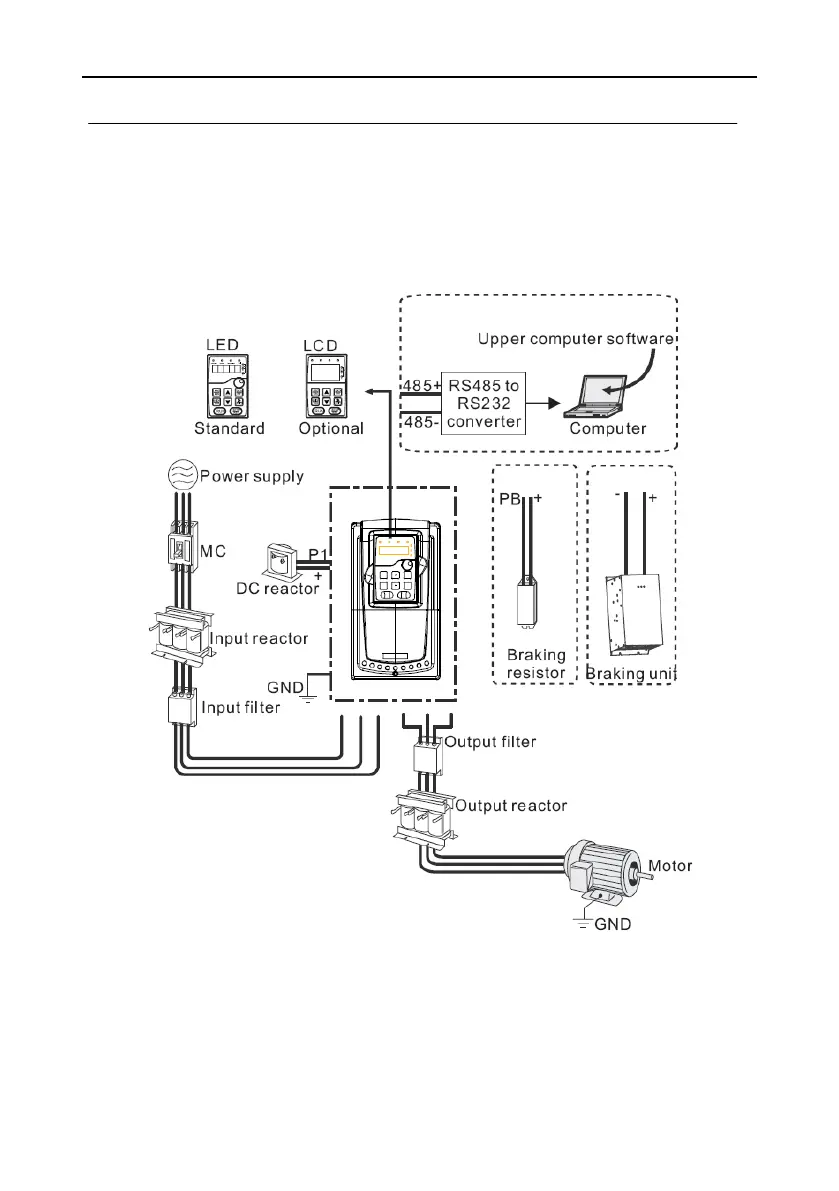

Below is the peripherial wiring of Goodrive300-19 series inverters.
Note:
1. The inverters (55kW) are embedded with braking unit.
2. The inverters (75kW) have P1 terminal and can be connected with external DC reactors.
3. The braking units apply standard braking units. Refer to the instruction of DBU for detailed
information.
