INVT Goodrive300-19 Series User Manual

Goodrive300-19 series open loop vector inverter special for hosit Basic operation instruction
-159-
P06.29
Upper output
limit of HDO
P06.27~100.0%
100.0%
P06.30
Corresponding
HDO output of
upper limit
0.00~50.00kHz
50.00kHz
P06.31
HDO output
filter time
0.000s~10.000s
0.000s

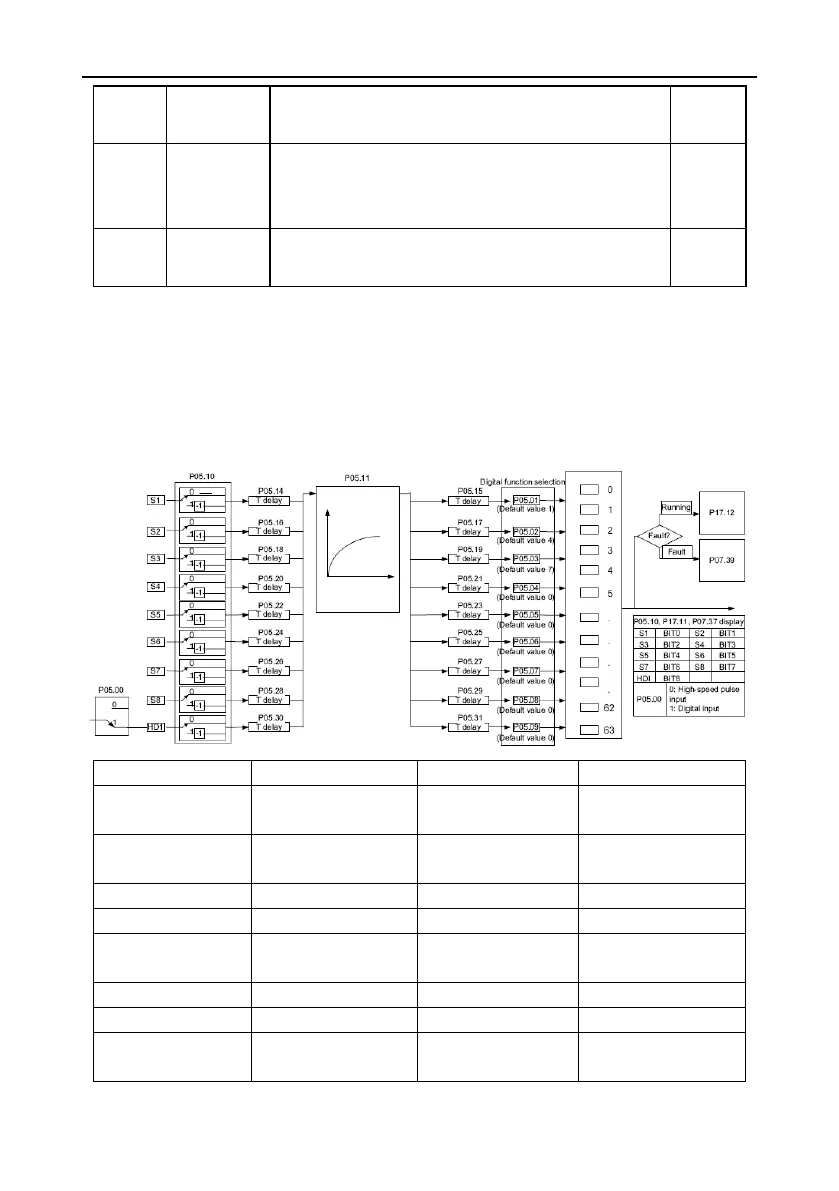

7.11 Digital input
Goodrive300-19 series inverters have 8 programmable digital input terminals and 1 open collector
input terminal in the standard configuration. All functions of the digital input terminals are
programmable by the function codes. Open collector input terminal can be selected into high-speed
pulse input terminal or common switch input terminal by function code.
0
No function
23~28
Reserved
1
Forward running
(FWD)
29
Torque control
disabling
2
Reverse running
(REV)
30
ACC/DEC disabling
3
3-wire running control
31
Reserved
4
Forward jogging
32
Reserved
5
Reverse jogging
33
Frequency setting
clear
6
Coast to stop
34
DC braking
7
Fault reset
35
Shift motor 1 to motor 2
8
Operation pause
36
Shift the command to
the keypad
