Goodrive300-19 series open loop vector inverter special for hosit Keypad operation procedure
-36-
Keypad operation procedure 5
5.1 What this chapter contains
This chapter contains following operation:
• Buttons, indicating lights and the screen as well as the methods to inspect, modify and set function
codes by keypad
5.2 Keypad
The keypad is used to control Goodrive300-19 inverters, read the state data and adjust parameters.

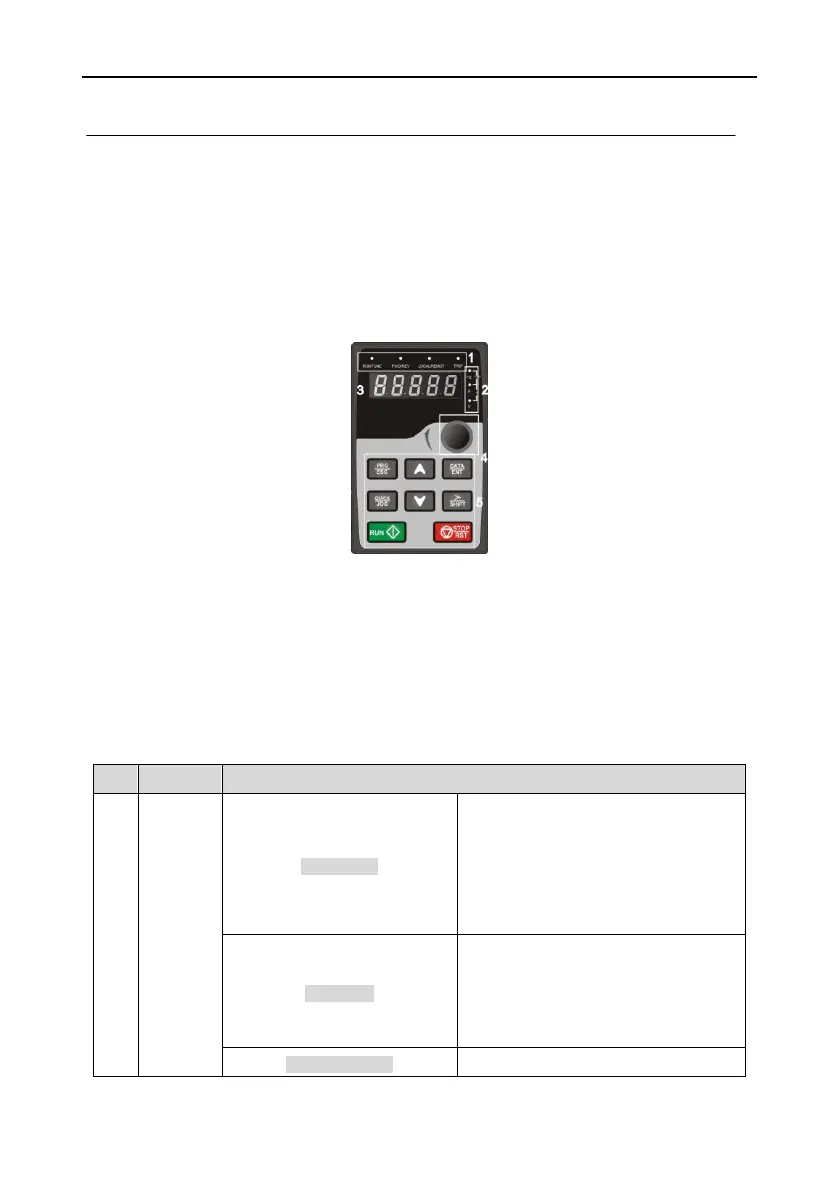

Fig 5-1 Keypad
Note:
1. The LED keypad is standard and the LCD keypad is optional. LCD keypad supports various
languages, parameters copy and 10-line high definition displaying, of which the installation
dimension is compatible with that of LED keypad.
2. It is necessary to use M3 screw or installation bracket to fix the external keypad. The
installation bracket for inverters of 380V 1.5~30kW is optional but it is standard for the
inverters of 380V 37~315kW.
LED off means that the inverter is in the
stopping state; LED blinking means the
inverter is in the parameter autotune
state; LED on means the inverter is in the
running state.
FWD/REV LED
LED off means the inverter is in the
forward rotation state; LED on means the
inverter is in the reverse rotation state.
LED for keypad operation, terminals
To Next Page
