INVT Goodrive300-19 Series - Keypad Displaying

Goodrive300-19 series open loop vector inverter special for hosit Keypad operation procedure
-37-
No.
Name
Description
operation and remote communication
control
LED off means that the inverter is in the
keypad operation state; LED blinking
means the inverter is in the terminals
operation state; LED on means the
inverter is in the remote communication
control state.
TRIP
LED for faults
LED on when the inverter is in the fault
state; LED off in normal state; LED
blinking means the inverter is in the
pre-alarm state.
2
Unit LED
Mean the unit displayed currently
Hz
Frequency unit
RPM
Rotating speed unit
A
Current unit
%
Percentage
V
Voltage unit
3
Code
displaying
zone

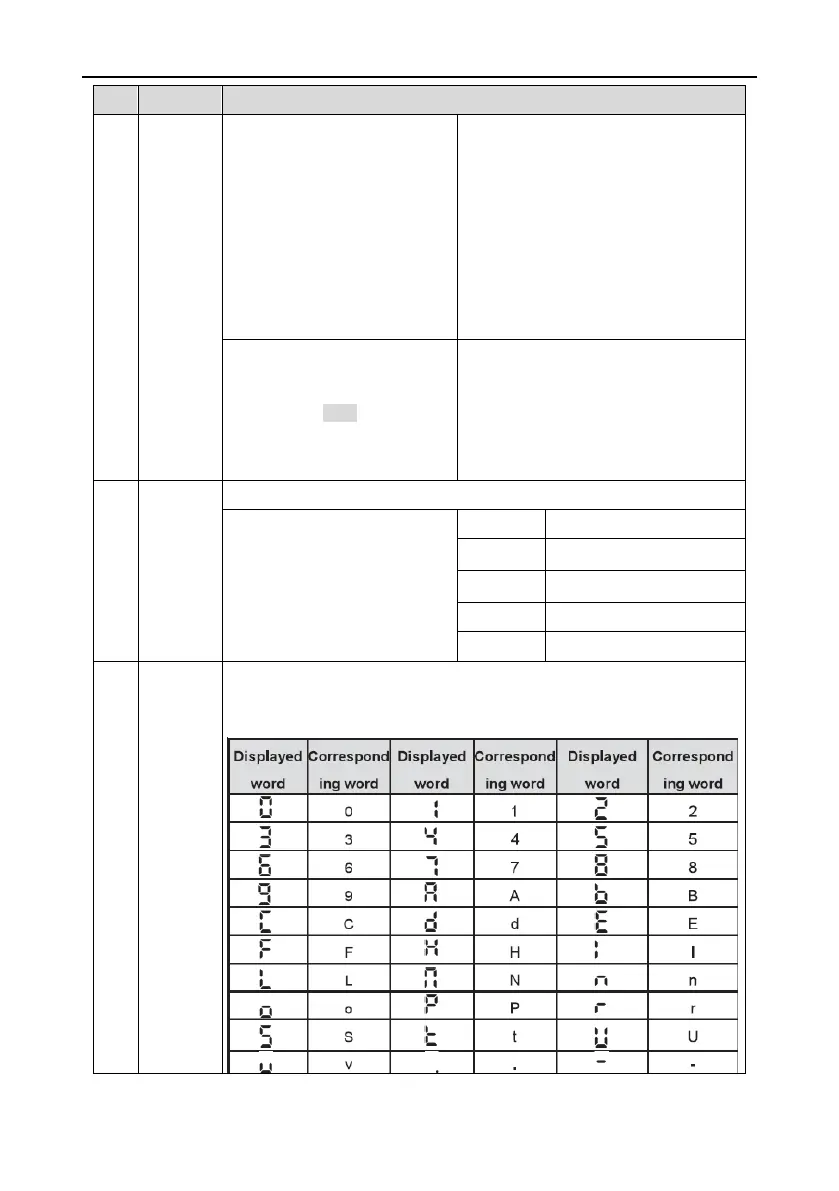

5-figure LED display displays various monitoring data and alarm code such as
set frequency and output frequency.
