INVT Goodrive300-19 Series User Manual

Goodrive300-19 series open loop vector inverter special for hosit Product overview
-17-
3. The output current can not exceed the rated output current and the output power can not
exceed the rated output power in the voltage range.

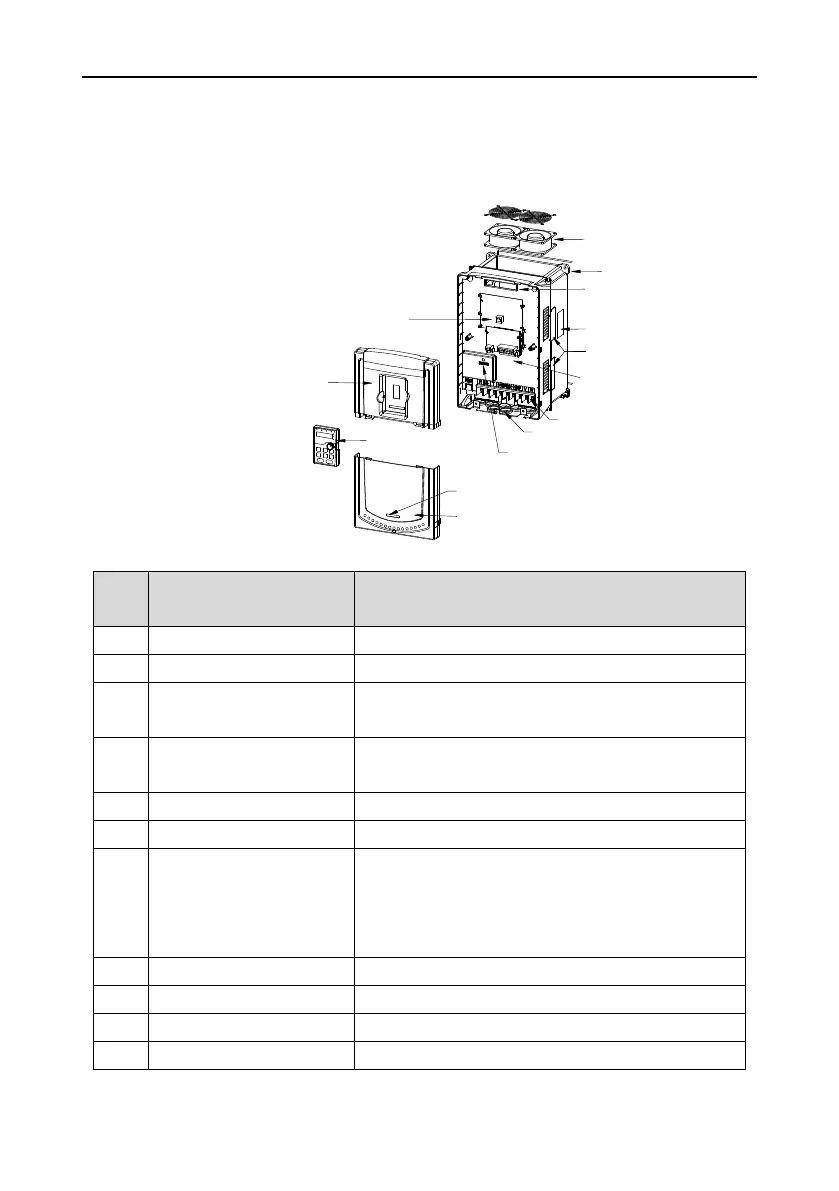

3.7 Structure diagram
Below is the layout figure of the inverter (take the inverter of 380V 30kW as the example).
4
6
7
1
2
3
14
13
9
10
11
12
8
5
Fig 3-5 Product structure
Serial
No.
Name
Illustration
1
Keypad port
Connect the keypad
2
Upper cover
Protect the internal parts and components
3
Keypad
See Keypad operation procedure for detailed
information
4
Cooling fan
See Maintenance and hardware fault diagnosis for
detailed information
5
Wiring port
Connect to the control board and the drive board
6
Name plate
See Product overview for detailed information
7
Side cover
Optional. The side cover will increase the protective
degree of the inverter. The internal temperature of the
inverter will increase, too, so it is necessary to derate the
inverter at the same time
8
Control terminals
See Electric installation for detailed information
9
Main circuit terminals
See Electric installation for detailed information
10
Main circuit cable port
Fix the main circuit cable
11
POWER light
Power indicator
