INVT Goodrive300-19 Series User Manual

Goodrive300-19 series open loop vector inverter special for hosit Product overview
-15-
Function
Specification
Braking unit
Built-in for inverters of 380V (≤55kW)
External for inverters of 380V (≥75kW)
EMC filter
Built-in C3 filter: meet the degree requirement of
IEC61800-3 C3
External filter: meet the degree requirement of
IEC61800-3 C2

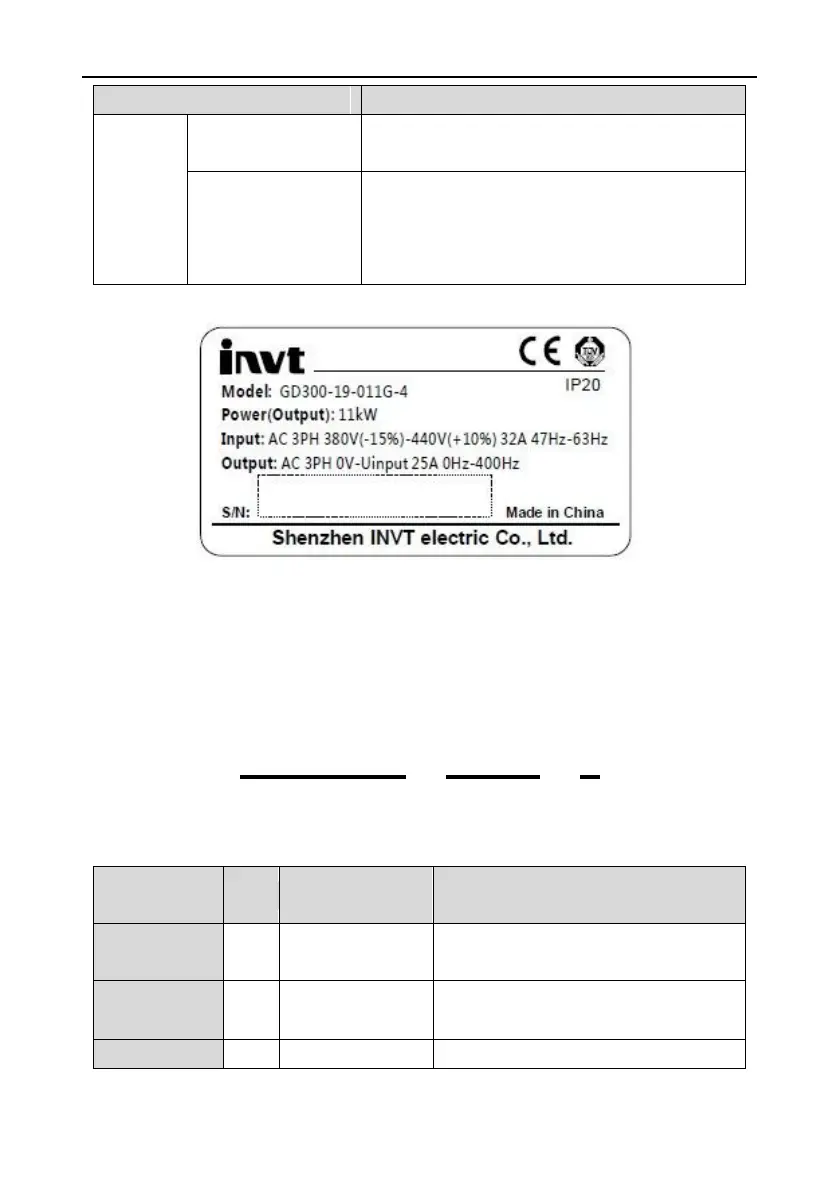

3.4 Name plate
Note: The name plate above is an example of Goodrive300-19 standard products. CE/TUV/IP20
will be identified on basis of actual certification.
Fig 3-3 Name plate
3.5 Type designation key
The type designation contains information on the inverter. The user can find the type designation on
the type designation label attached to the inverter or the simple name plate.
GD300-19 – 5R5G – 4
① ② ③
Fig 3-4 Product model
Key
No.
Detailed
description
Detailed content
Abbreviation
①
Product
abbreviation
Goodrive300-19: open loop vector inverter
special for hoist
Rated power
②
Power range +
Load type
5R5-5.5kW
G-Constant torque load
Voltage degree
③
Voltage degree
AC 3PH 380V(-15%)~440V(+10%)
