INVT iMars MG Series

INVT iMars MG series grid-tied solar inverters Monitoring communication
the user. The authenticated encryption is OPEN, WEP, WPA and so on. The user can set the
security according to the needs.

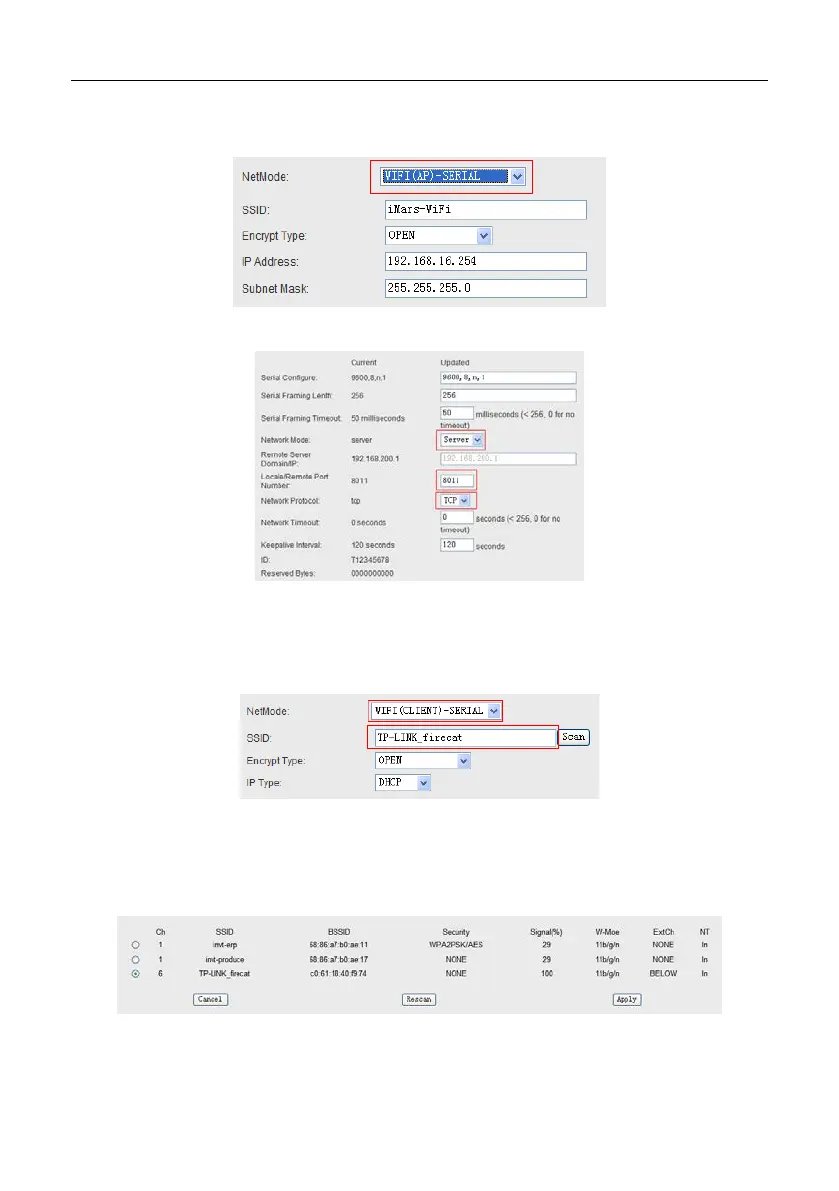

Select TCP Server in the configuration of the serial port.
（3）Configuration of router LAN monitoring
Select STA station spot mode as the operation mode. SSID is the hotspot name and the user
needs to modify it as the router name.
The user can use the button “Scan” to scan the wireless hot spots information and then the router
list can be found. The password and authentication encryption need to be set according to the
attribute of the wireless router.
Select TCP Server in the configuration of the serial port.
- 59 -
