INVT iMars MG Series User Manual

INVT iMars MG series grid-tied solar inverters Monitoring communication

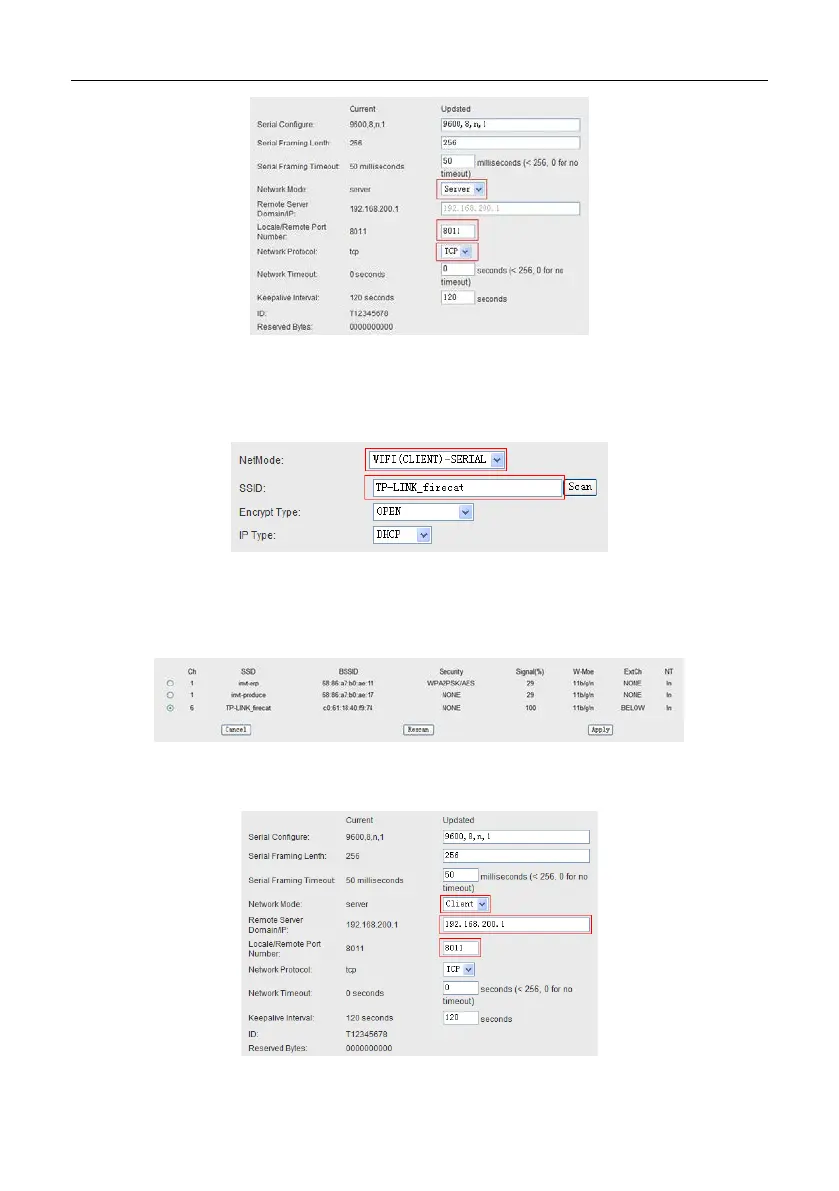

（4）Configuration of router server
Select STA station spot mode as the operation mode. SSID is the hotspot name and the user
needs to modify it as the router name.
The user can use the button “Scan” to scan the wireless hot spots information and then the router
list can be found. The password and authentication encryption need to be set according to the
attribute of the wireless router.
Select TCP Server in the configuration of the serial port. Input the remote IP address according to
the actual. For example,“192.168.200.1”.
3. Commissioning
- 60 -

INVT iMars MG Series Specifications

General

Brand	INVT
Model	iMars MG Series
Category	Inverter
Language	English
