INVT SV-DA200 User Manual

SV-DA200 series AC servo drives Installation instruction
‐19‐

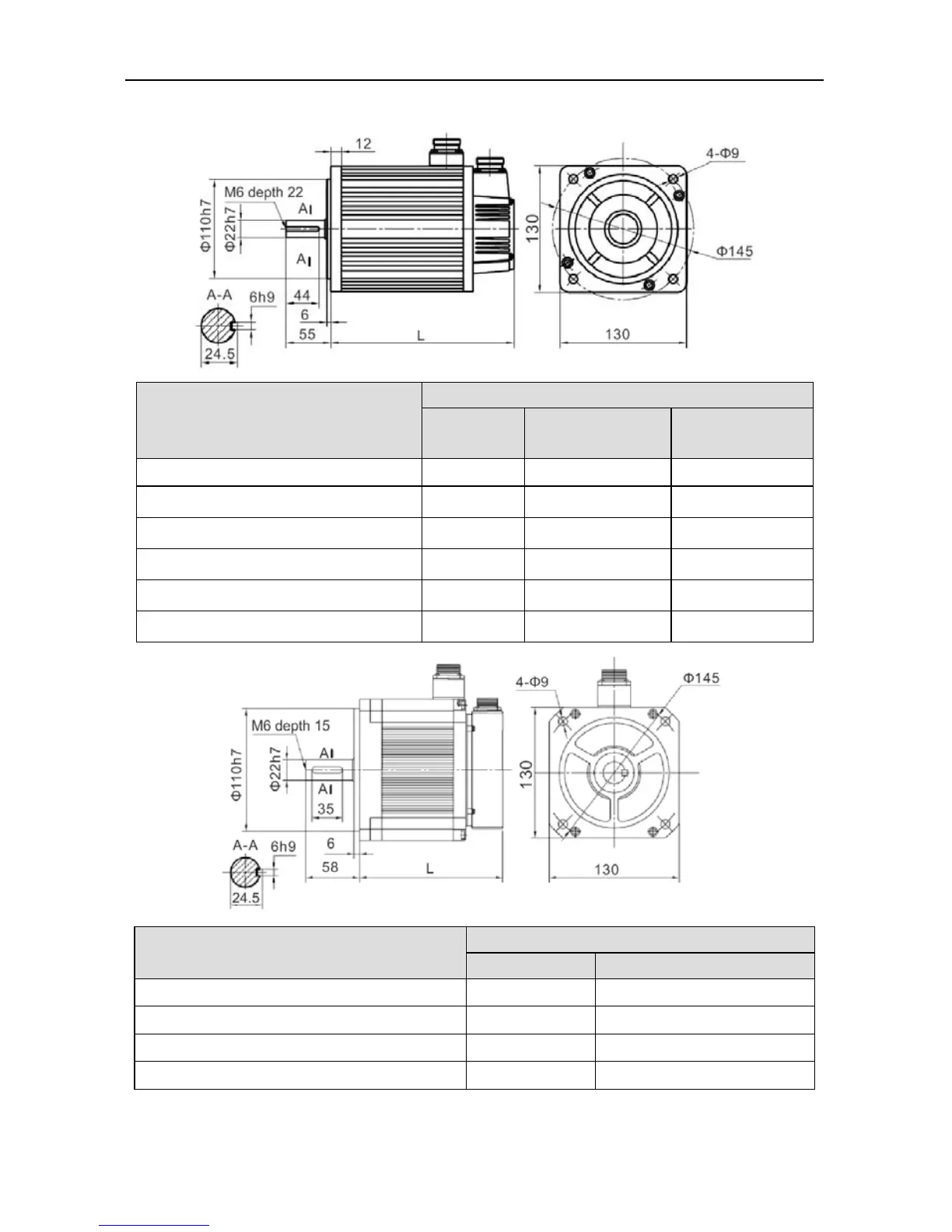

2.3.5 Outline and installation dimension for 130 bases (mm)
Motor model (2500-PPR/multi-turn
absolute value/rotary transformer)
L(mm)
W/o brake
Permanent magnet
brake
Electromagnetic
brake
SV-MM13-1R0E-□-□A□ 143 185 185
SV-MM13-1R5E-□-□A□ 159 201 201
SV-MM13-2R0E-□-□A□ 175 217 217
SV-MM13-3R0E-□-□A□ 207 249 249
SV-MH13-0R8B-□-□A□ 167 209 209
SV-MH13-1R3B-□-□A□ 202 244 244
Motor model
(17-bit single-turn encoder)
L(mm)
W/o brake Electromagnetic brake
SV-MM13-1R0E-□-3A□ 165 220
SV-MM13-1R5E-□-3A□ 185 240
SV-MM13-2R0E-□-3A□ 215 270
SV-MM13-3R0E-□-3A□ 265 320
