INVT SV-DA200 User Manual

SV-DA200 series AC servo drives Installation instruction
‐20‐

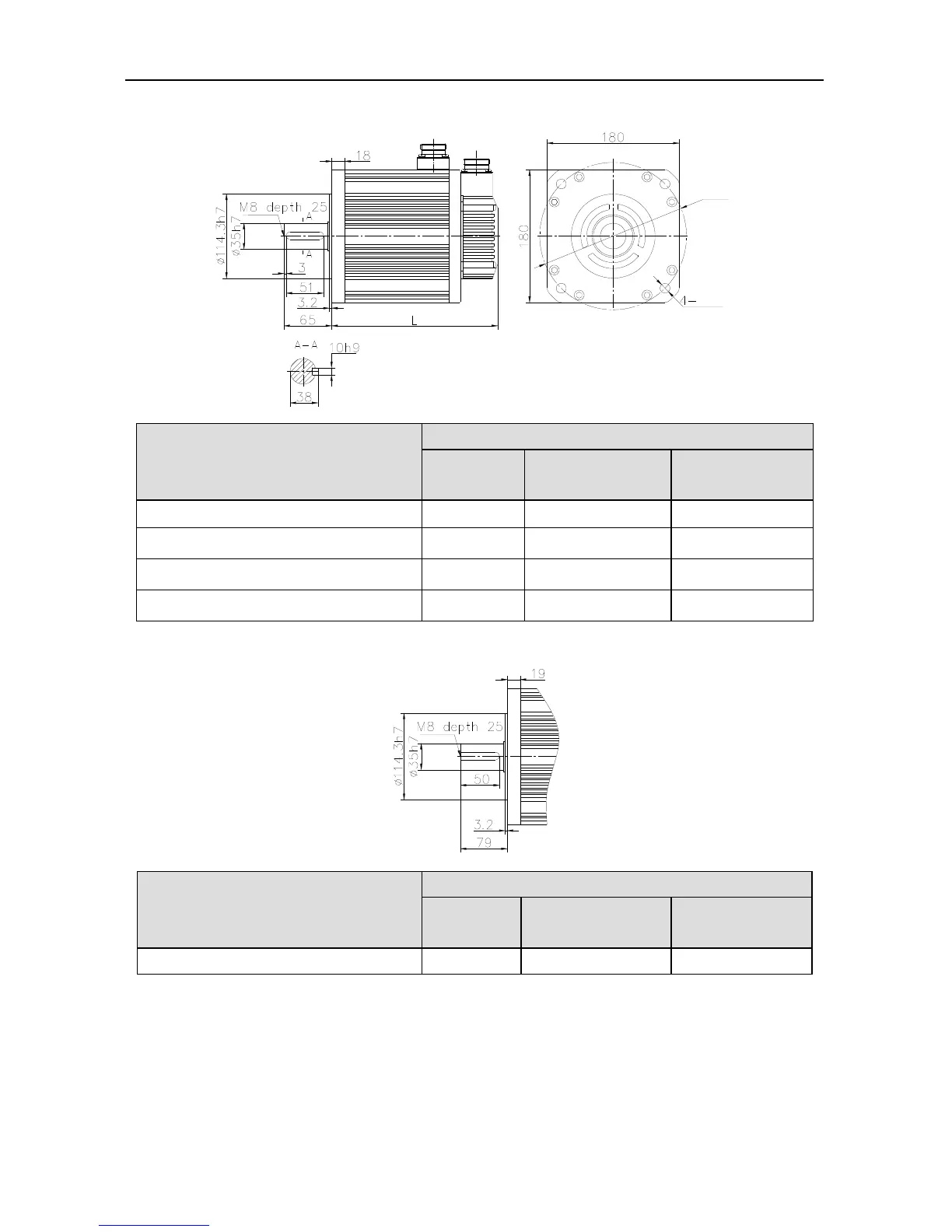

2.3.6 Outline and installation dimension for 180 bases (mm)
∅13.5
∅ 200
Motor model (2500-PPR/multi-turn
absolute value/rotary transformer)
L(mm)
W/o brake
Permanent magnet
brake
Electromagnetic
brake
SV-MM18-3R0B-□-□A□ 232 314 304
SV-MM18-4R4B-□-□A□ 262 344 334
SV-MM18-5R5B-4-□A□ 292 382 364
SV-MM18-7R5B-4-□A□ 346 436 418
SV-SM18-7R5B shaft extension dimension (mm):
Motor model (2500-PPR/multi-turn
absolute value/rotary transformer)
L(mm)
W/o brake
Permanent magnet
brake
Electromagnetic
brake
SV-SM18-7R5B-4-□A□ 375 465 455
