SV-DA200 series AC servo drives Running and operation

‐78‐

Sign Name

Analog input 3 zero drift clear

Inertia identification

Absolute value encoder clear

Note: The auxiliary functions can be operated only when servo is disabled, otherwise users cannot

enter the auxiliary function menu.

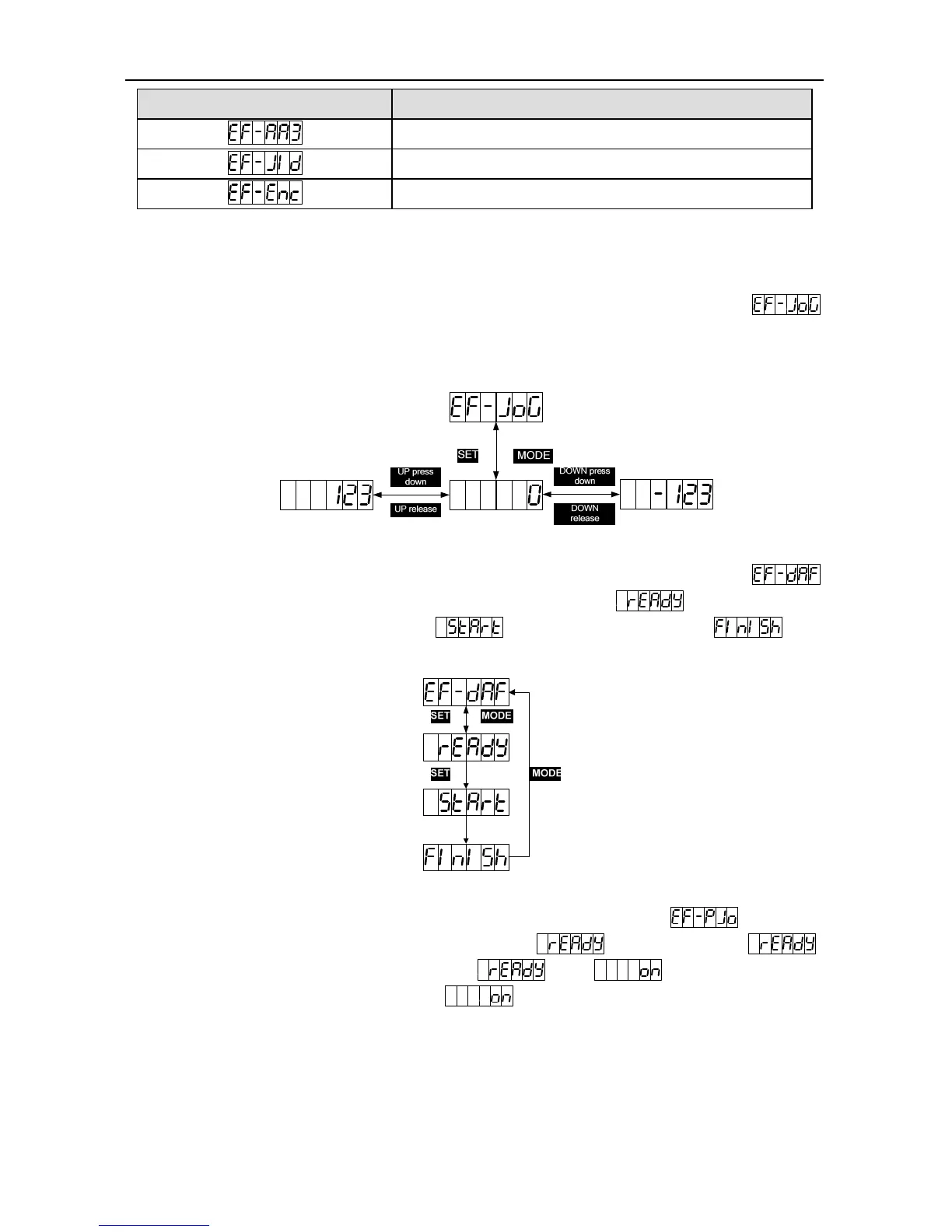

5.2.5.2 Operation flowchart of trial jogging

Press MODE key to switch to the auxiliary function mode. Press UP/DOWN key to the

menu, and press SET key to the jogging interface. The interface will display the current speed of the

motor. Press UP key, the motor will rotate to the setting speed anticlockwise and stops when

releasing the key. Press DOWN key, the motor will rotate to the setting speed clockwise and stops

when releasing the key.

5.2.5.3 Operation flowchart of restoring the factory parameter

Press MODE key to switch to the auxiliary function mode. Press UP/DOWN key to the

menu, and press SET key to the interface. The interface will display . Press SET key to

restore to the factory values, it will display , after finishing, it will display . The

Operation flowchart of analog speed reference zero drift clear, analog torque reference zero drift clear

and analog torque reference zero drift clear are the same.

5.2.5.4 Operation flowchart of program commissioning

Press MODE key to the auxiliary function mode. Press UP/DOWN key to the menu, and

press SET key to the interface. The interface will display . In the interface of ,

SHIFT key can be used to switch between and , start and stop the

commissioning function. In the interface of , UP/DOWN key can be used to start the

program commissioning and has no relationship with P5.00. If the motor direction is counterclockwise,

it can be started by UP key. If the motor direction is clockwise, it can be started by DOWN key. After

starting, the interface will display the current speed.
